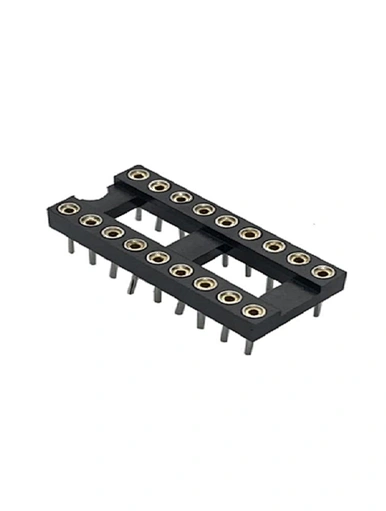

2.54mm IC Socket H=1.9mm Straight Female Type L=4.82MM Tube Packing
HC-ICF410-19XXXSXA048T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity
Series No.:HC-ICF410-19XXXSXA048T01
Description: 2.54mm IC Socket H=1.9mm Straight Female Type L=4.82MM Tube Packing
Position: 04P TO 40P
Type: Straight
Package : Tube Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Contact Material ：Brass (H59-3)
Insulator Material ： PPS/BT (UL94V-0)
Rated Current ： 1.0 AMPS
Contact Resistance ：10mΩ Max
Insulation Resistance ：1000mΩ Min
Operation Temperature：﹣40℃ to +105℃
