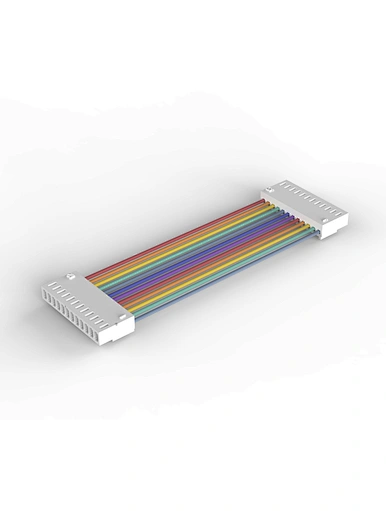

02P to 16P 2.54mm Wire Housing to 2.54mm Housing opposite Wire Harness Cable Assembly
HC-WH254-S-XX-SN-XX-X-XXX-02
EXW,FOB
500 pieces
100000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Series No. | HC-WH254-S-XX-SN-XX-X-XXX-02 |
Product name: | 2.54mm Housing to 2.54mm Housing opposite wire Hareness Cable Assembly |
Position: | 02P To 16P |
Connector: | Alternative or original brand name / Per your request |
Wire Spec: | UL Cores Wire、Multi-Conductor Shielded wire、 Flat Ribbon Wire. |
UL1007 UL1571 UL1061 UL1015/ 26AWG/28AGW/30AWG/32AWG | |
Color: | Customized |
Length: | Customized Per your request |
Outer Insulation: | PVC、 Rubber、 Silicone、 PE、Teflon. |
Package: | PE Bag |
OEM&ODM Service: | Yes |
Samples: | Support samples to testing then mass production |
Technical Drawings: | Support |
| Quality Control: | 100% open/short Test |
Raw material inspection | |
Size inspection | |
Visual inspection | |
| Application: | Electronics 、 Automotive、 Medical、 Industry、Network、 |
Electronics toy、 LED、Security、Equipment | |
Certification: | CE/ISO/RoHS, SGS |
Lead Time: | 2-3weeks |
Payment Method: | TT, Paypal |
Shipping way: | By Sea by air by DHL/Fedex /UPS/TN |

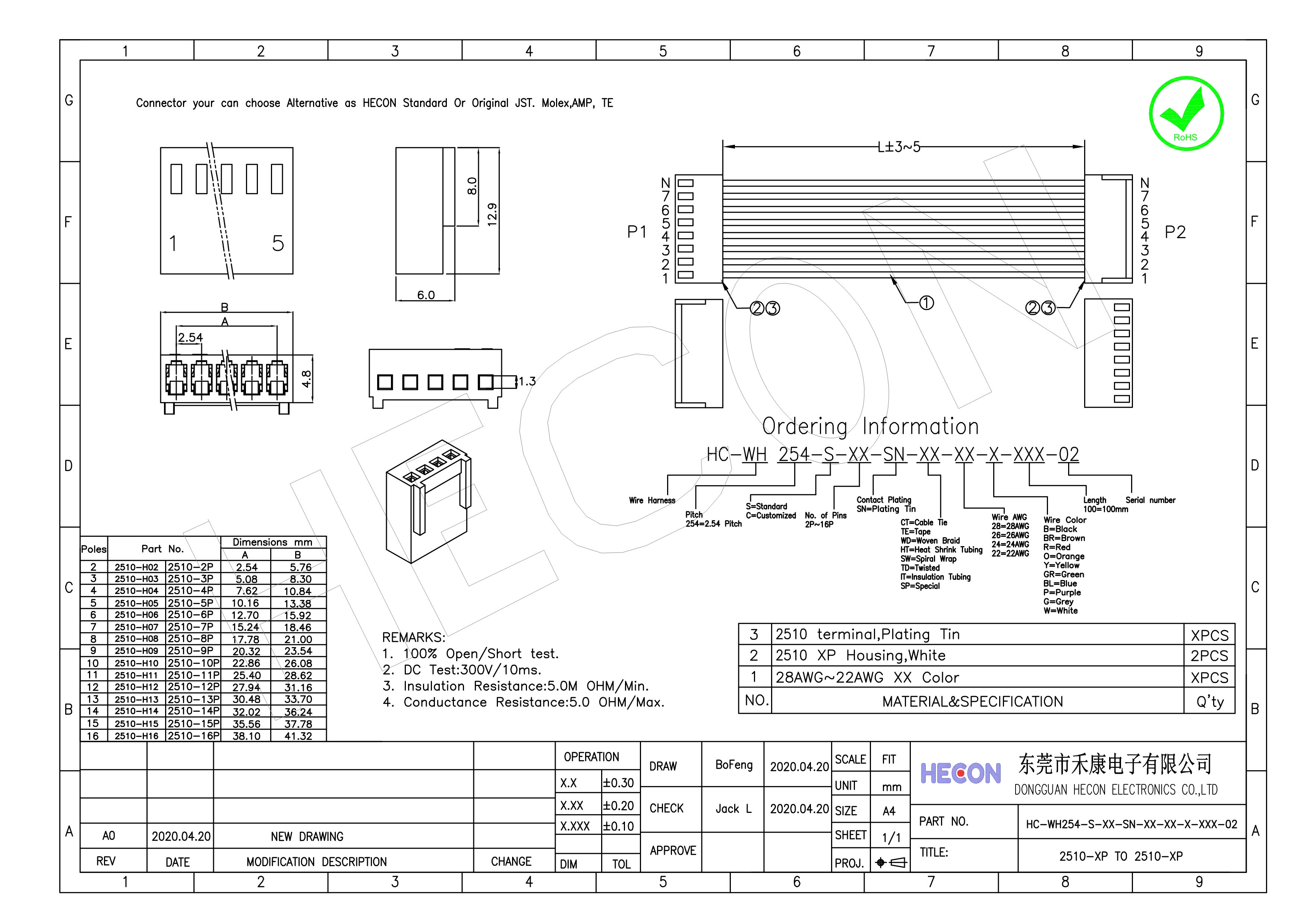

Drawings Details：
We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as USB Type- C, RJ11, Pogo pin and Pogo pin connectors also wire harness cable assemblies series & Molding Cable/IDC Flat Cable/FFC Cable so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
For Any Help please send email to sales@dghecon.com
