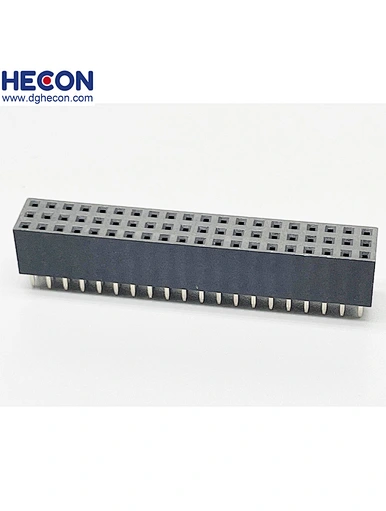

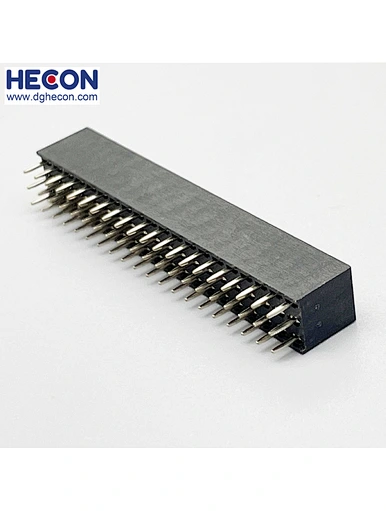

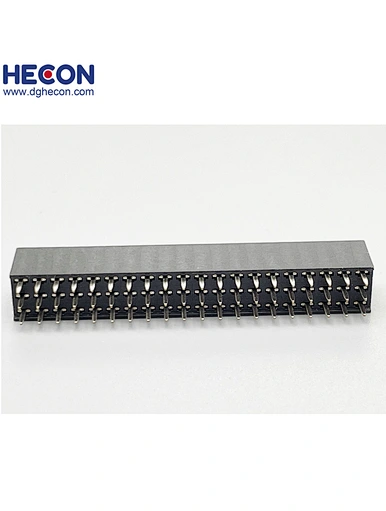

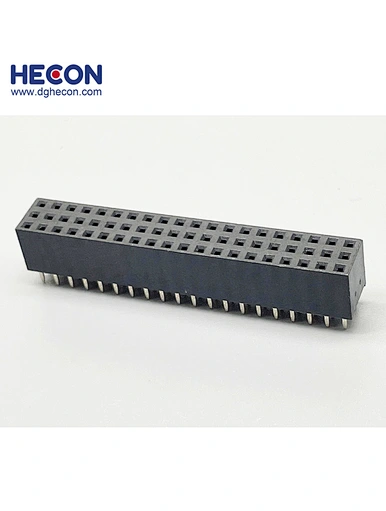

Series No.: HC-FH485-03X20CNG0SYX01
Description: 2.54mm female header H8.5 Three Row Straight
Position: 3x20P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Package: PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 week.
Specifications
Rated Current:3.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds

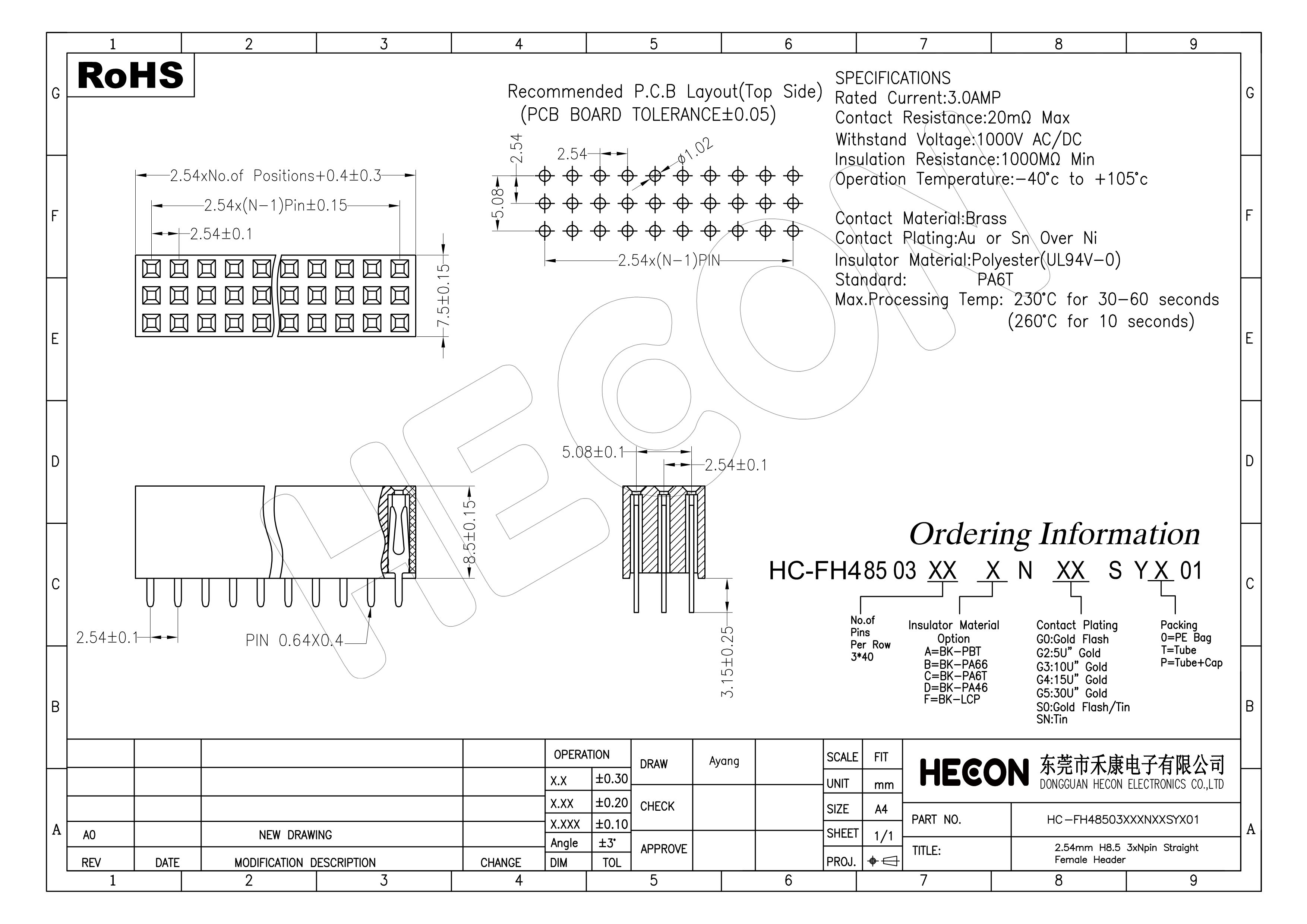

Drawing Details
We Dongguan Hecon Electronics Co.,ltd has full Pin header Connectors & Female Header, and PCB Connectors
Pitch: | 0.8mm Pin Header | 1.0mm Pin Header | 1.27mm Pin Header | 1.27x2.54mm Pin Header | 2.0mm Pin Header | 2.5mm Pin Header | 2.54mm Pin Header | 3.96mm Pin Header | 5.08mm Pin Header | U Type Pin Header |
Insulator Height 1.0mm/1.5mm/1.7mm/2.0mm/2.54mm for you pick up also Wire Harness Cable & IDC Flat Cable | Cable Assemblies series so that we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
