Series No.: HC-FH485-02X40CNG0SYX01

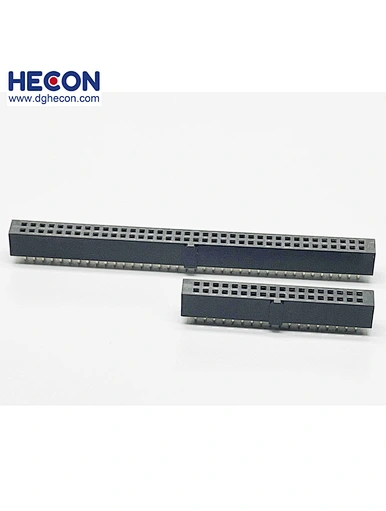

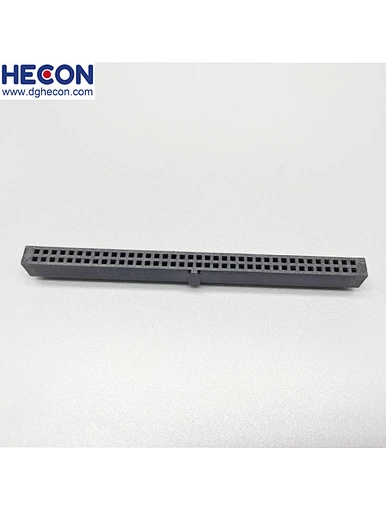

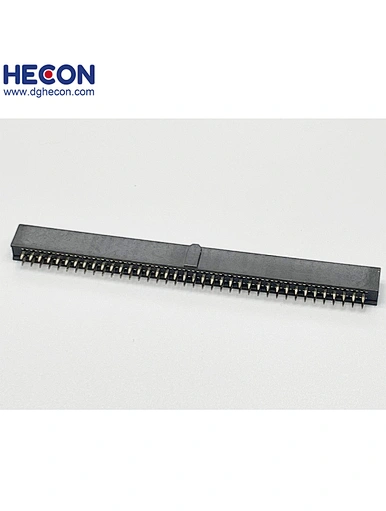

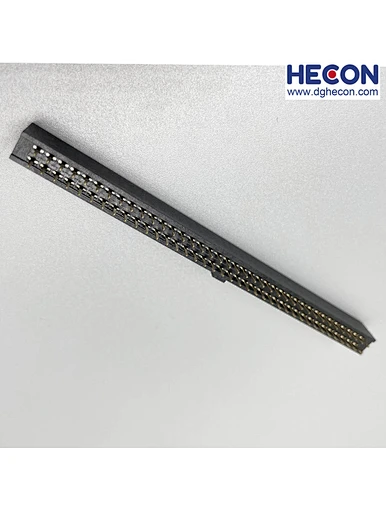

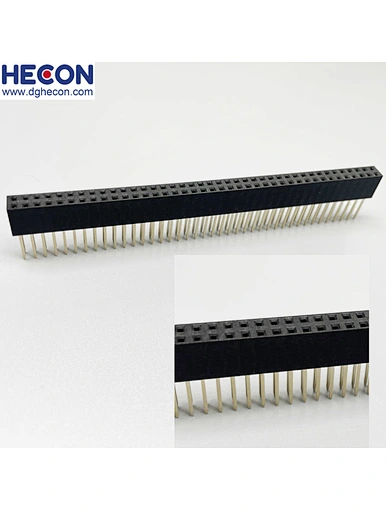

Description: 2.54mm Female Header H8.5 Dual Row Straight
Position: 2x40P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:3.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds

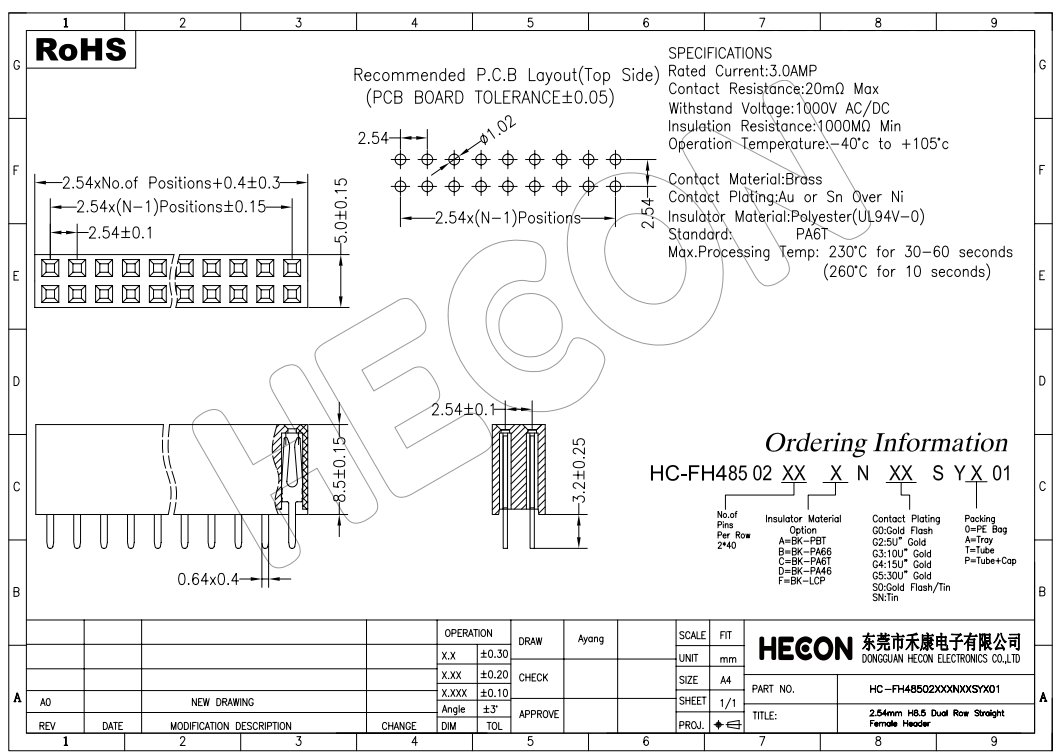

Drawings
We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo
pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
