2.54mm Female Header-H7.1|HECON|China supplier

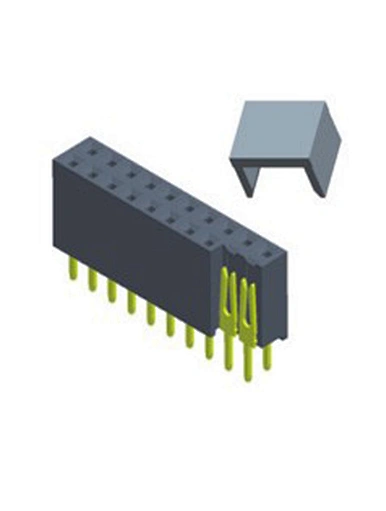

2.54mm Female Header H7.1 Dual Row Straight with cap

Model NO. HC-FH471-02XXCNG0SYX01

Delivery EXW,FOB

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 15Day

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

Quantity

Series No.: HC-FH471-02XXCNG0SYX01

Description: 2.54mm Female Header H7.1 Dual Row Straight

Position: 2x02P TO 2x40P

Type: Straight

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:3.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

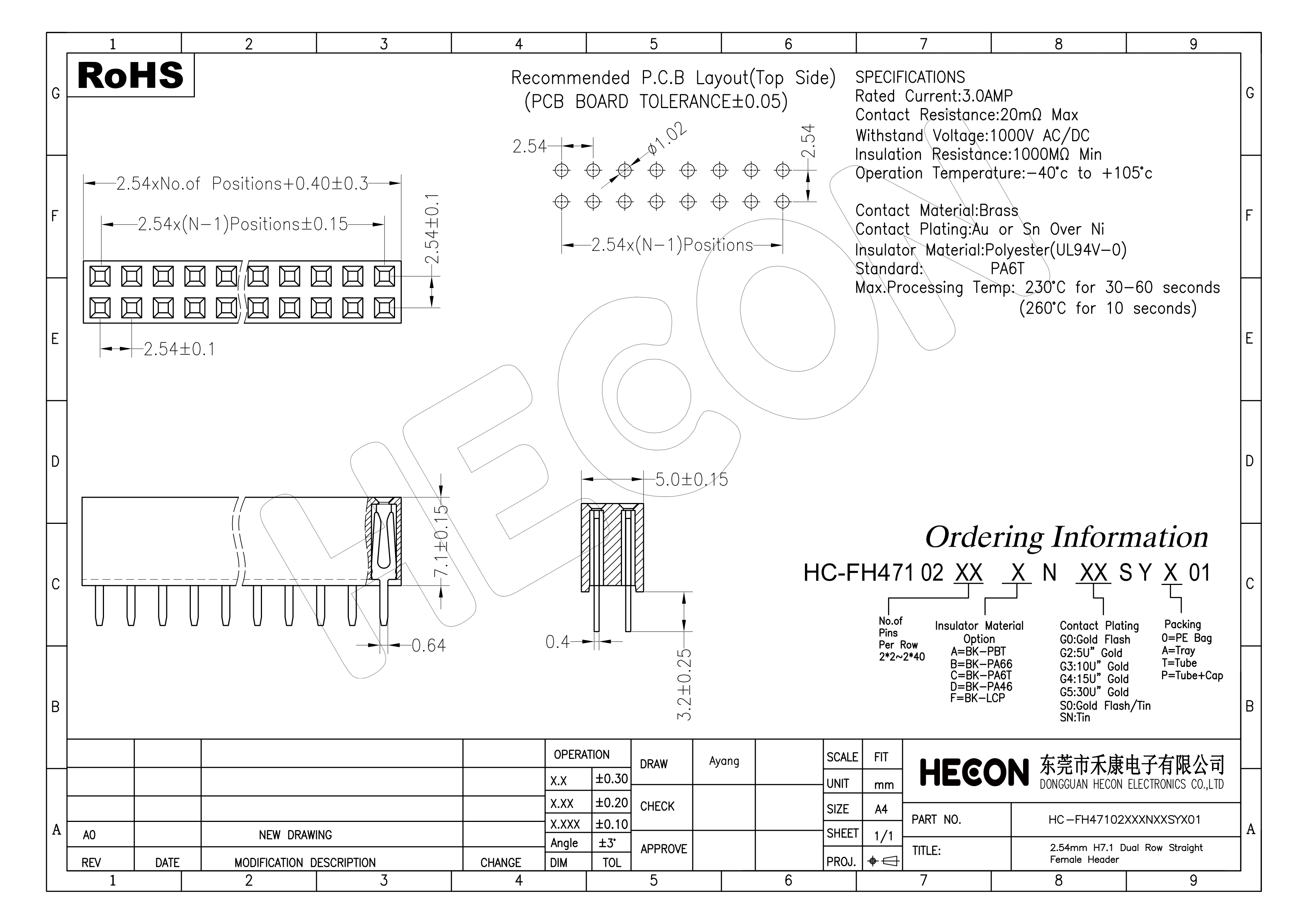

Drawings Details：

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
