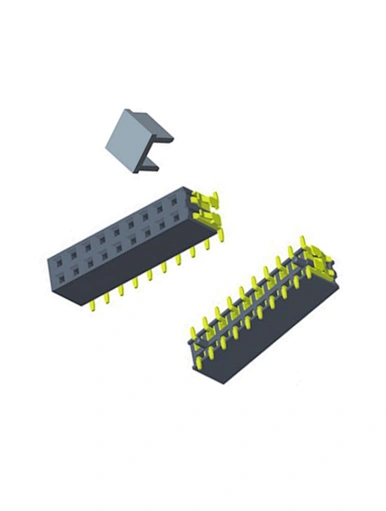

2.54mm Female Header H4.5 Dual Row SMT Type With CAP
2.54mm Female Header H4.5 Dual Row SMT Type With CAP
HC--FH445-02XXCNG0MUX01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-FH445-02XXCNG0MUX01

Description: 2.54mm Female Header H4.5 Dual Row SMT

Position: 2x02P TO 2x40P

Type:  SMT

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:3.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

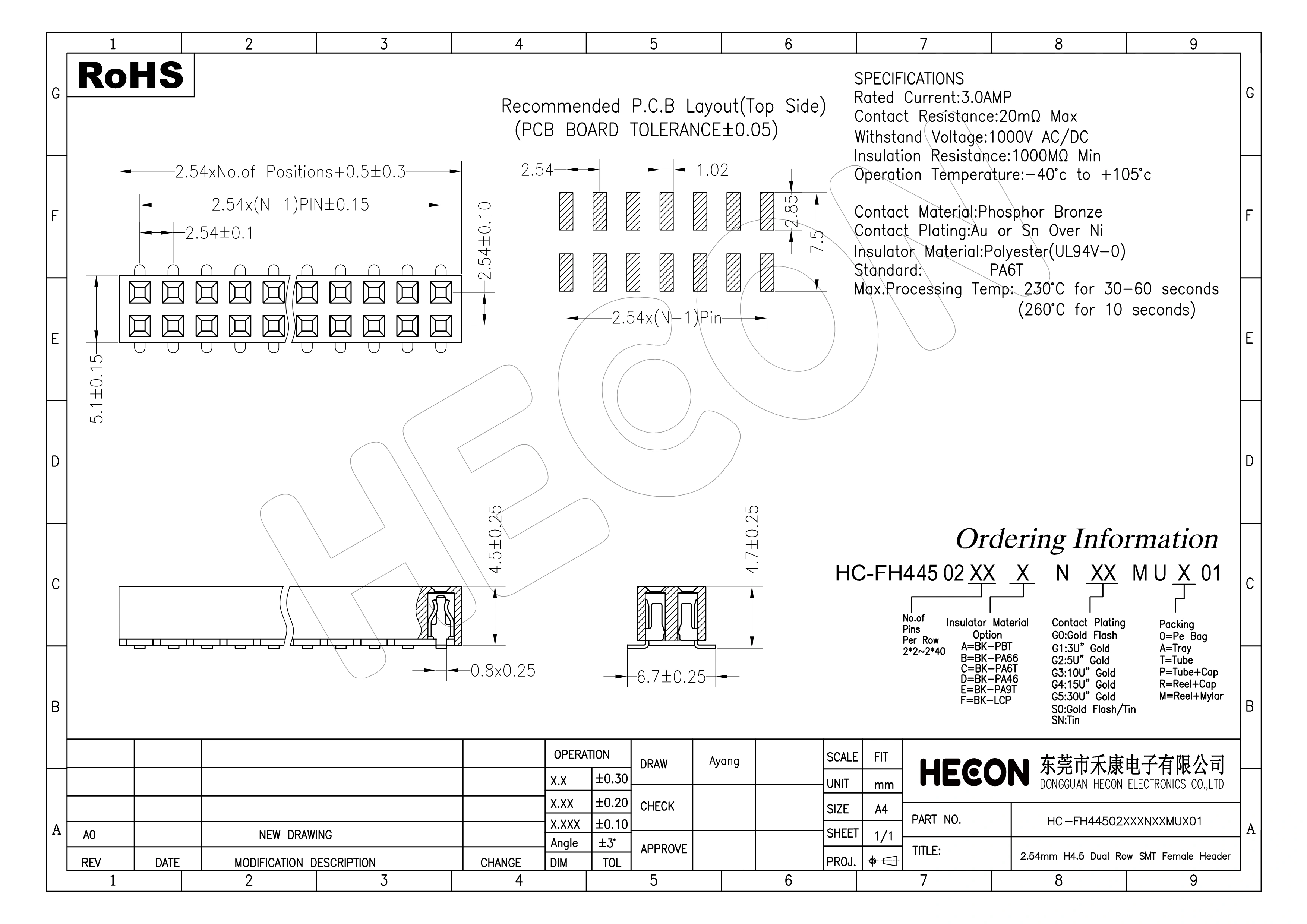

Drawings Details：
