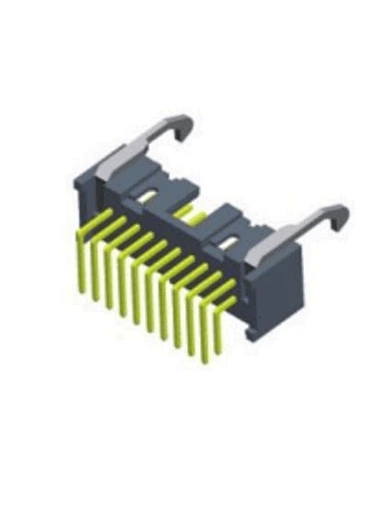

2.54mm Ejector Header Straight H=9.7

Drawing Download

Series No.: HC-EH414-XXXXSDXXT01

Description: 2.54mm Ejector Header Straight H=9.7

Position: 08P To 64P

Type: Straight

Raw Material: PA46

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds
