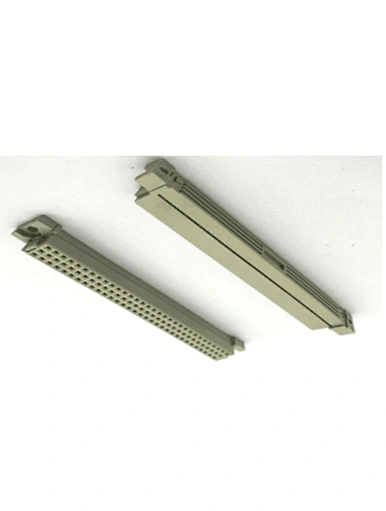

2.54mm DIN41612 Straight 96P 3Row IDC-Type Eurocard Connector
2.54mm DIN41612 Straight 96P 3Row IDC-Type Eurocard Connector
HC-4DIN41612-XX-AFSXX-BNA01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Series No.: HC-4DIN41612-XXAFSXXBNA01


Description:2.54mm DIN41612 Straight 96P PCB connector


Position: 96P


Type: Straight



 Specifications  ：


Raw Material: PBT-UL94V-0


Contact Material: Brass


Rated Current:3.0AMP


Contact Resistance: 30mΩ  Max


Withstand Voltage:1000V AC/DC


Insulation Resistance:1000mΩ Min


Operation Temperature: -40°c to +105°c


Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds



Package : PE Bag/ Tube /Tray or Tape&Reel Packing


MOQ: 1K


Free samples:10pcs within 1 weeks.

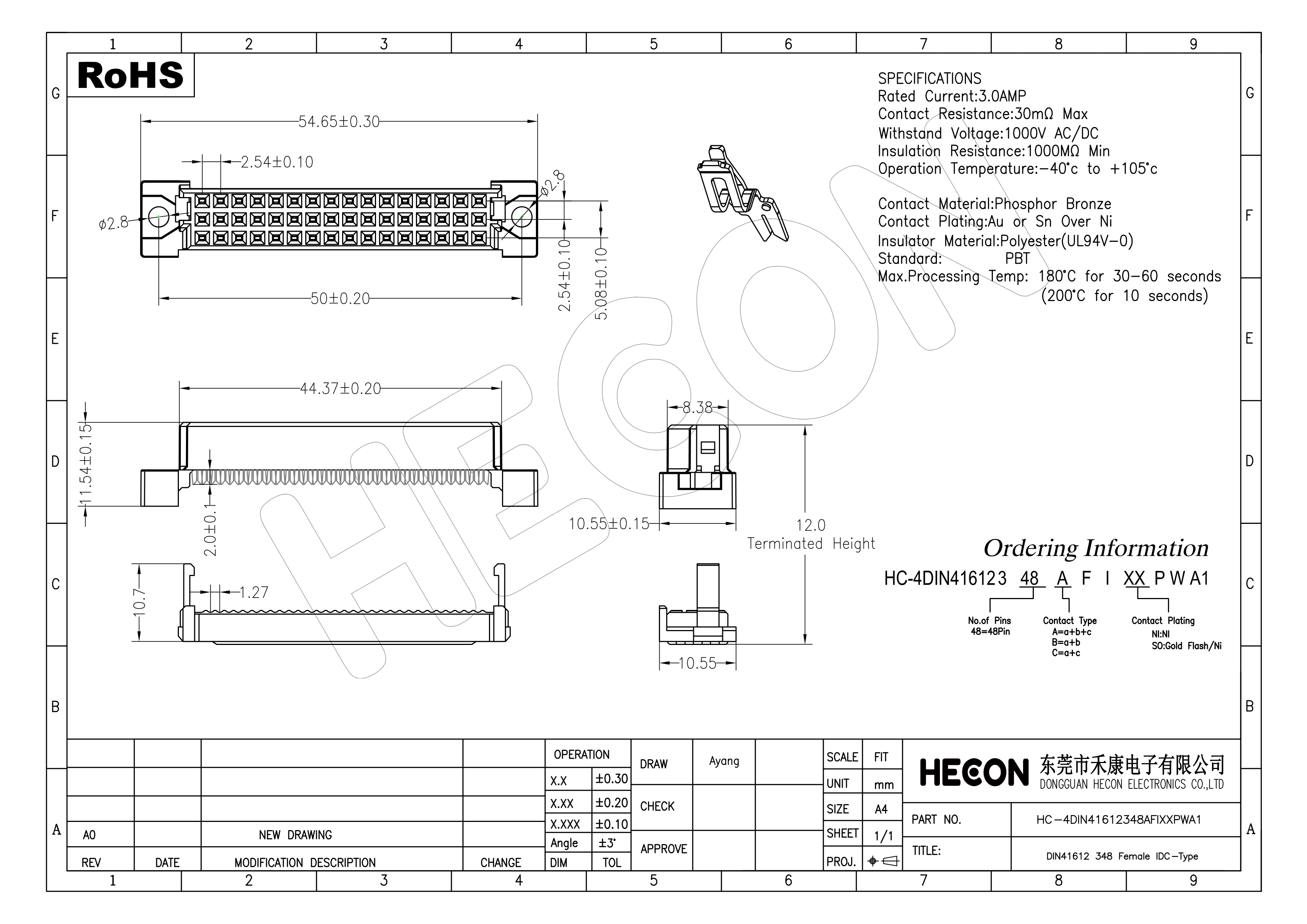

Drawings Details：




We HECON has full complete standard connectors and special customized products service such as Eurocard Connector and Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
