2.54mm DIN41612 Straight 16P TO 64P Female IDC-Type
2.54mm DIN41612 Straight 16P TO 64P Female IDC-Type
HC-4DIN41612-XX-AFSXXBNA-01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

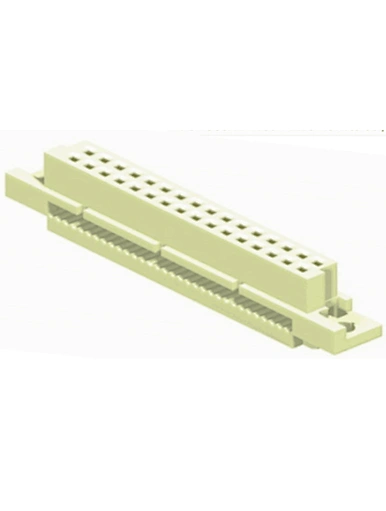

DIN41612 IDC-Type Eurocard Connector


Series No.: HC-4DIN41612-XXAFSXXBNA01


Description:2.54mm DIN41612 Straight 16P TO 64P Female IDC-Type


Position: 16P-64P


Type: Straight


  Specifications :

Raw Material: PBT-UL94V-0


Contact Material: Brass


Rated Current:3.0AMP


Contact Resistance: 30mΩ  Max


Withstand Voltage:1000V AC/DC


Insulation Resistance:1000mΩ Min


Operation Temperature: -40°c to +105°c


Max.Processing Temp: 230°c for 30-60 Seconds


                                     260°c for 10 Seconds



Package : PE Bag/ Tube /Tray or Tape&Reel Packing


MOQ: 1K


Free samples:10pcs within 1 weeks.

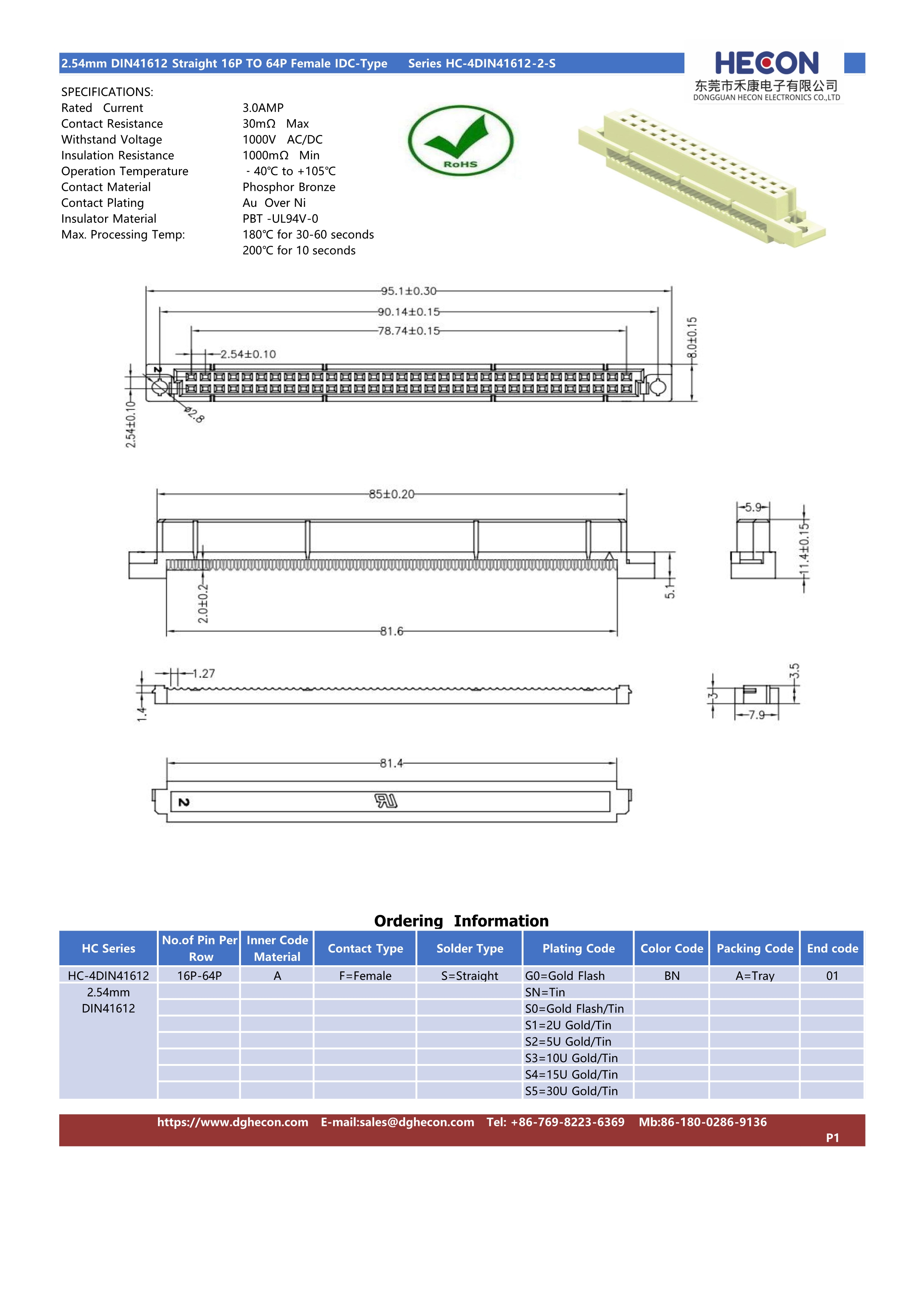

Drawings Details：







We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
