2.54mm DIN41612 Straight 16P TO 64P Female 2Rows
HC-4DIN41612-XXAFSXXBNA01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Series No.: HC-4DIN41612-XXAFSXXBNA01

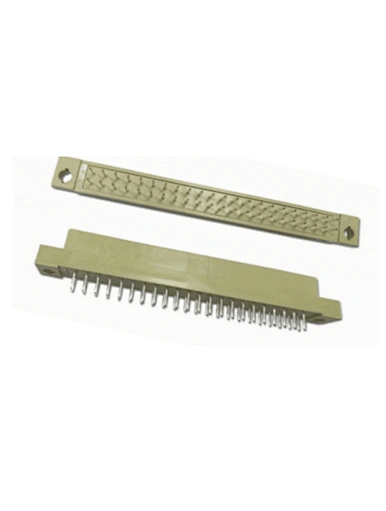

Description:2.54mm DIN41612 Straight 16P TO 64P Female 2Rows
16p din41612 female straight Eurocard Connector
Position: 16P TO 64P
Type: Straight
Specifications :
Raw Material: PBT-UL94V-0
Contact Material: Brass
Rated Current:2.0AMP
Contact Resistance: 30mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

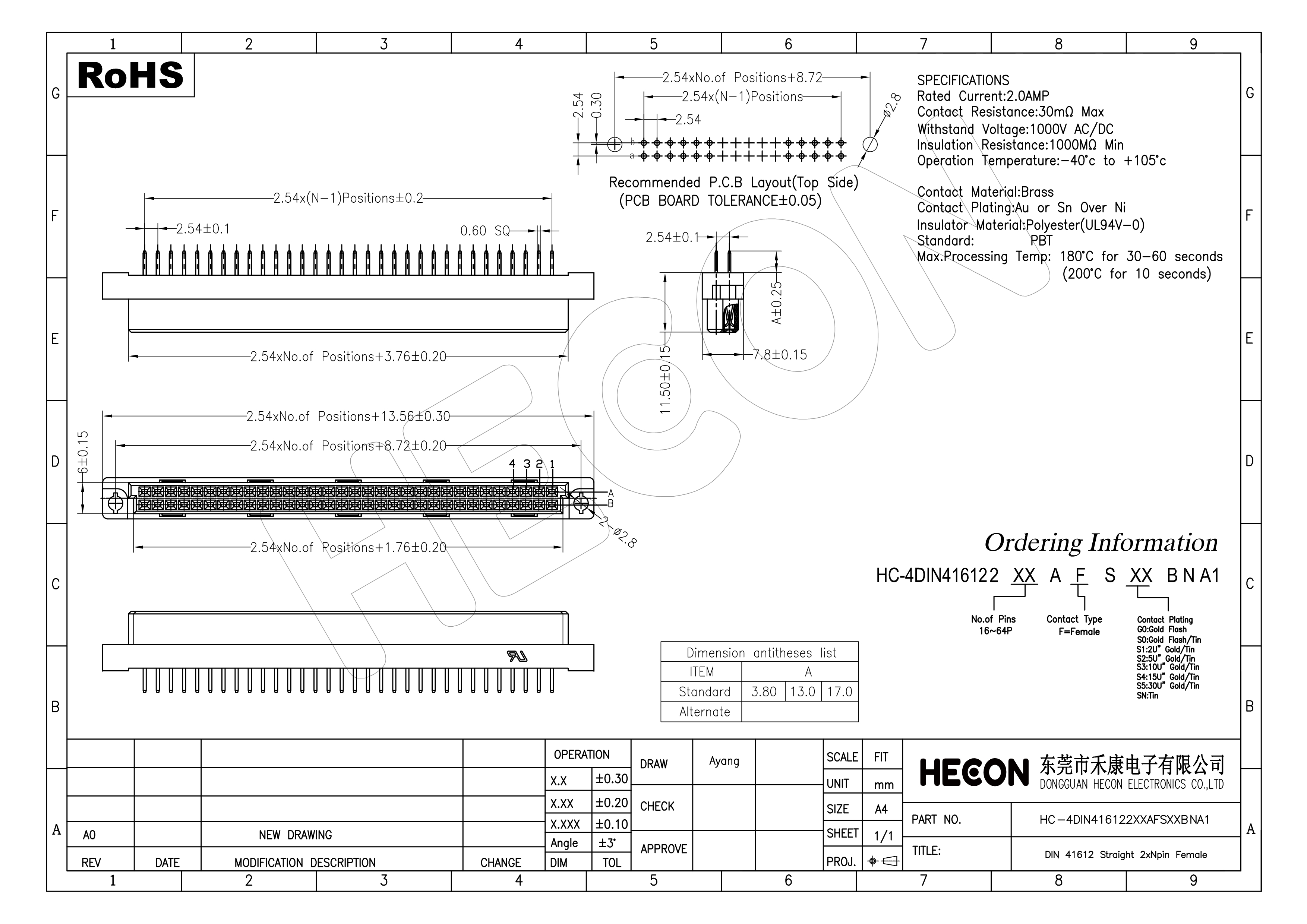

Drawings Details：
