Series No.: HC-4DIN41612-XXAFSXXBNT01

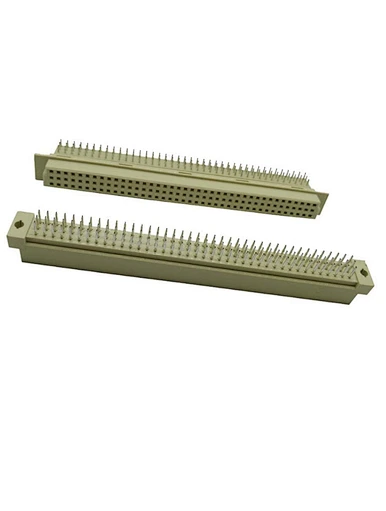

Description: 2.54mm DIN41612 Straight 12P TO 120P Female
Position: 12P To 120P
Type: Straight
Specifications:
Raw Material: PBT-UL94V-0
Contact Material: Brass
Rated Current:2.0AMP
Contact Resistance: 30mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

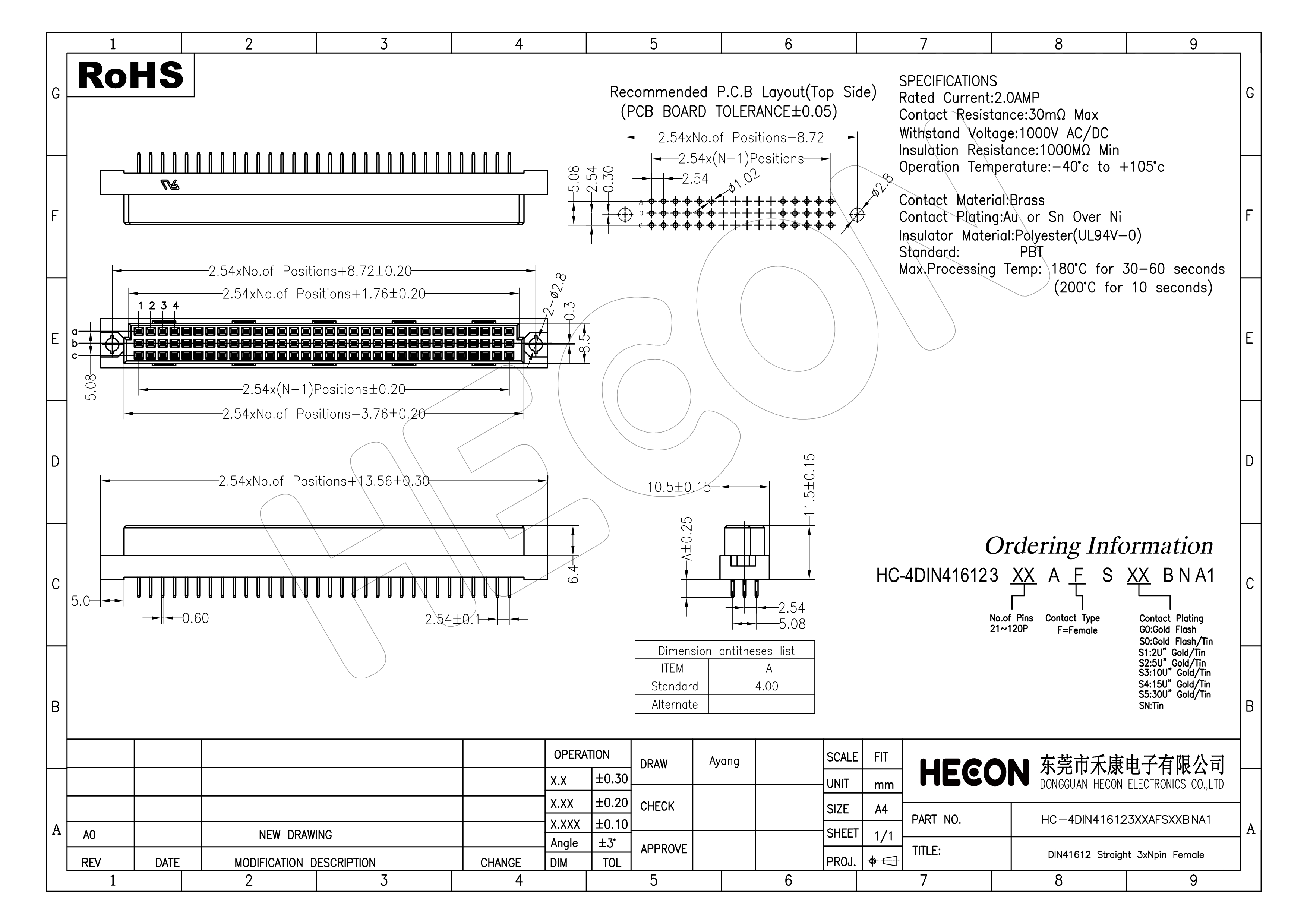

Drawings Details：
We HECON has full complete standard connectors and special customized products service such as Eurocard Connector and Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
