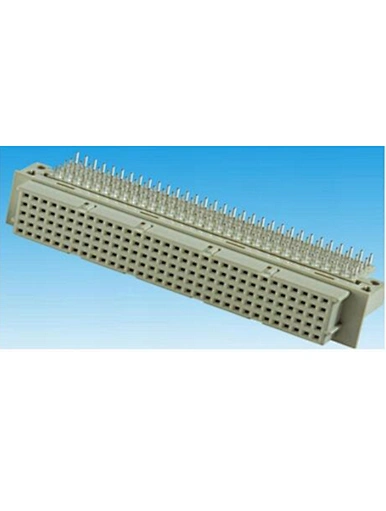

2.54mm DIN41612 Right Angle 5Rows 90 Degree 160Pin Female Eurocard Connector
HC-4DIN41612-XX-AFR-XXBNA01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
Series No.: HC-4DIN41612-XXAFRXXBNA01
Description: 2.54mm DIN41612 Right Angle 160P Female PCB Eurocard Connector
Position: 160P
Type: Right Angle
Specifications：
Raw Material: PBT-UL94V-0
Contact Material: Brass
Rated Current:3.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

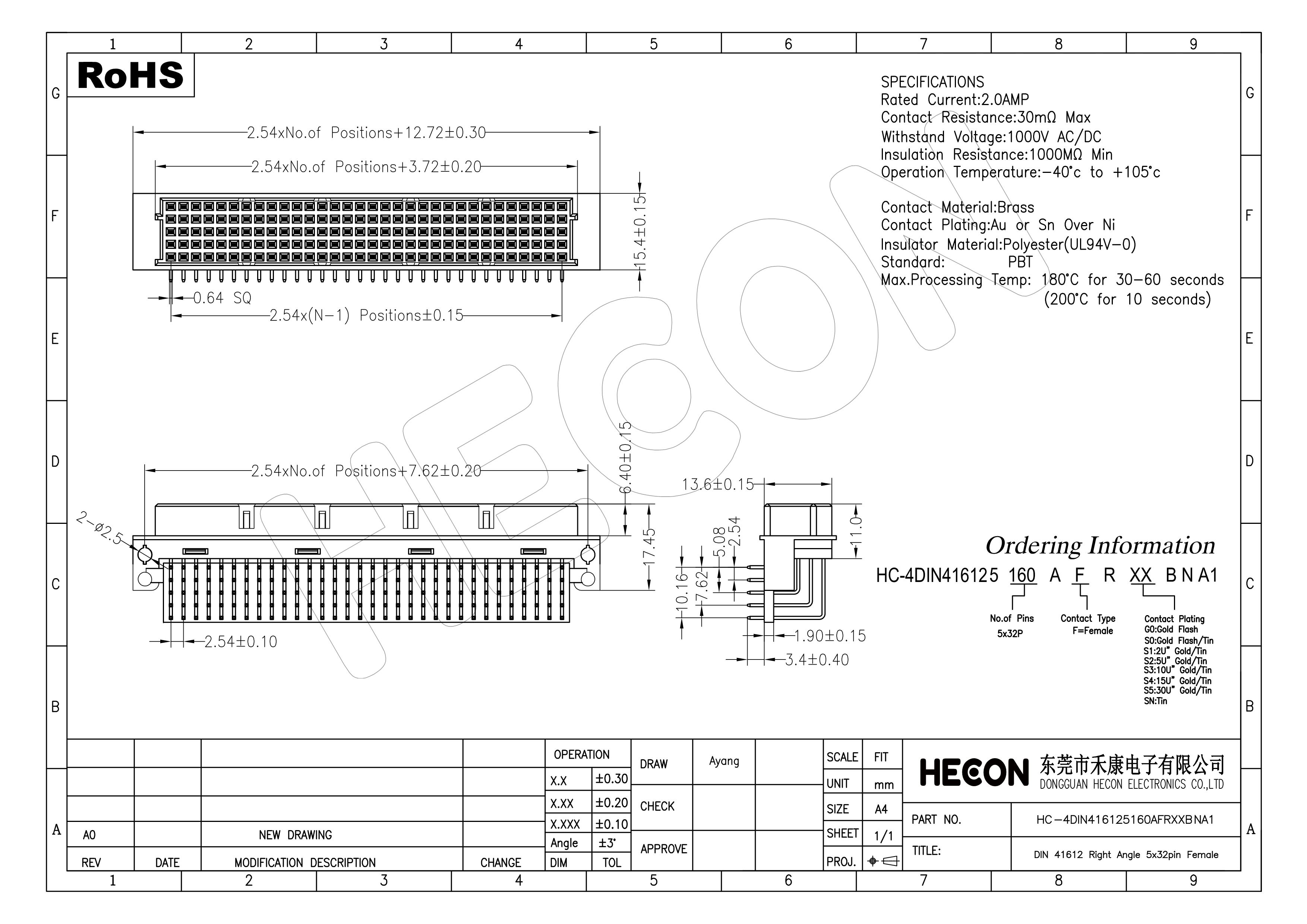

Drawings Details：
