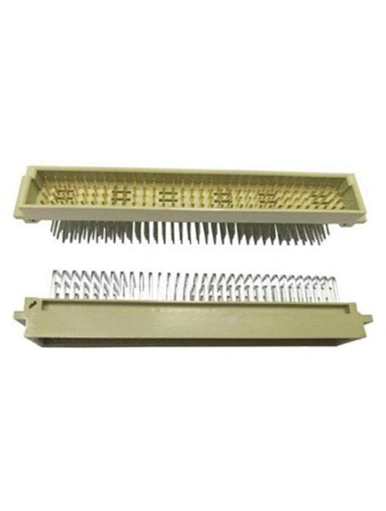

2.54mm DIN41612 Right Angle 90 Degree 128P Male 4Rows
2.54mm DIN41612 Right Angle 90 Degree 128P Male 4Rows
HC-4DIN41612-XXAMRXXBNA-01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

DIN41612 90 Degree DIN41612 Male Connector DONGGUAN factory Manufacturers Quality assurance


Series No.: HC-4DIN41612-XXAMRXXBNA01


Description: 2.54mm DIN41612 Right Angle 128P Male 4Rows


Position: 128P


Type: Right Angle


Specifications :

Raw Material: PBT-UL94V-0


Contact Material: Brass

Rated Current:3.0AMP

Contact Resistance: 20mΩ  Max


Withstand Voltage:1000V AC/DC


Insulation Resistance:1000mΩ Min


Operation Temperature: -40°c to +105°c


Max.Processing Temp: 230°c for 30-60 Seconds

                                    260°c for 10 Seconds



Package : PE Bag/ Tube /Tray or Tape&Reel Packing


MOQ: 1K


Free samples:10pcs within 1 weeks.

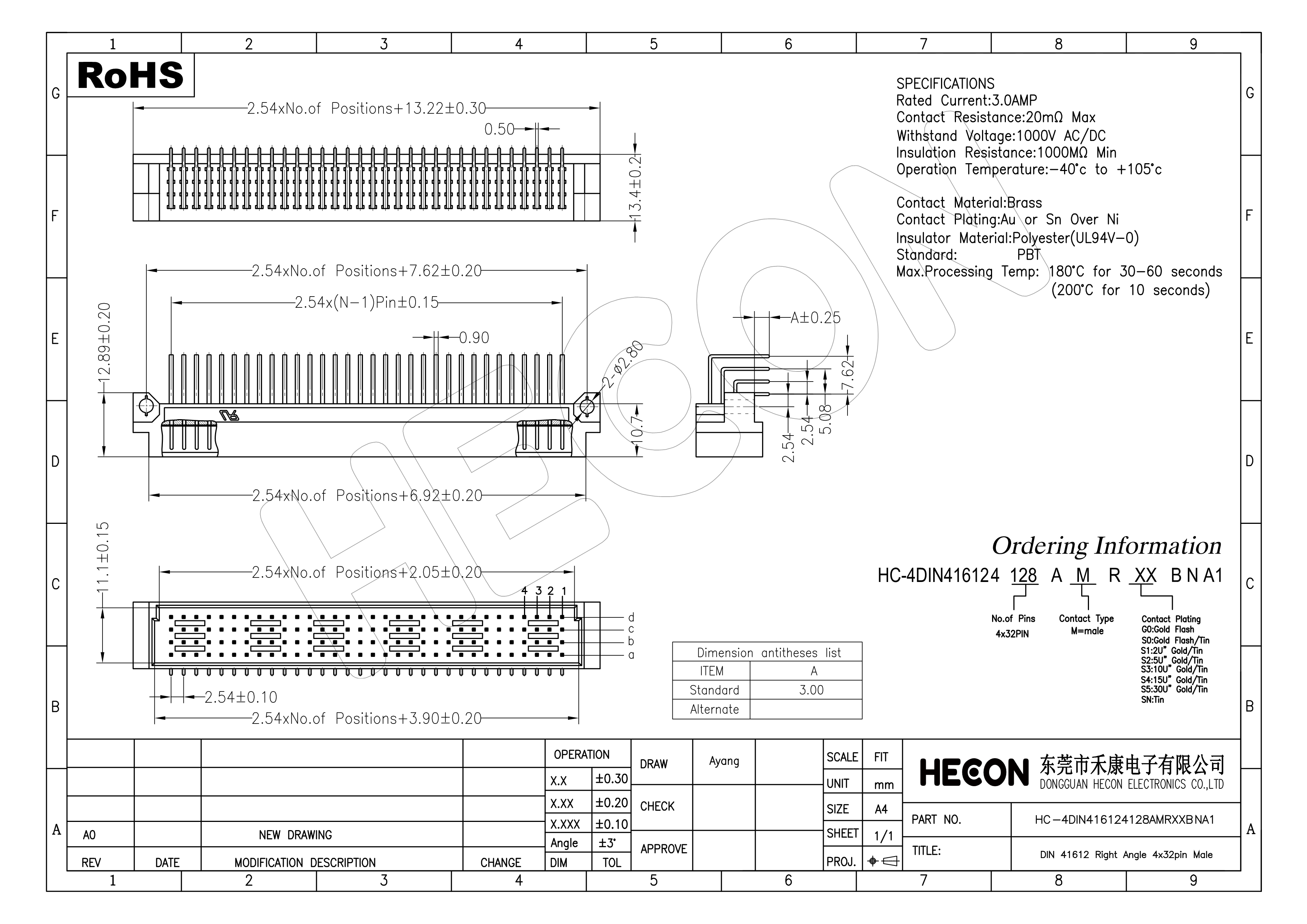

Drawings Details：


We HECON has full complete standard connectors and special customized products service such as Eurocard Connector and Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
