Series No.: HC-4DIN41612-XXAMPXXBNA01

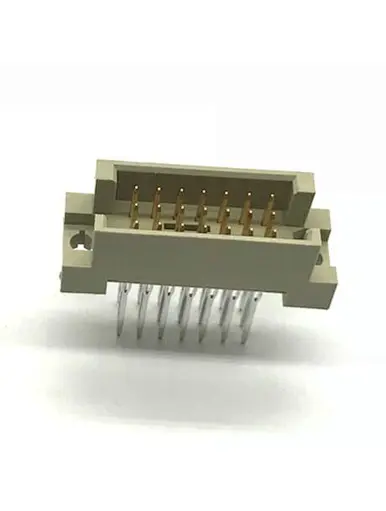

Description:2.54mm DIN41612 Male Press Fit Type 3Rows
Position: 21P TO 120P
Type: Press Fit
Specifications：
Raw Material: PBT-UL94V-0
Contact Material: Phosphor Bronze
Rated Current:20AMP
Contact Resistance: 30mΩ Max
Withstand Voltage:1000V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

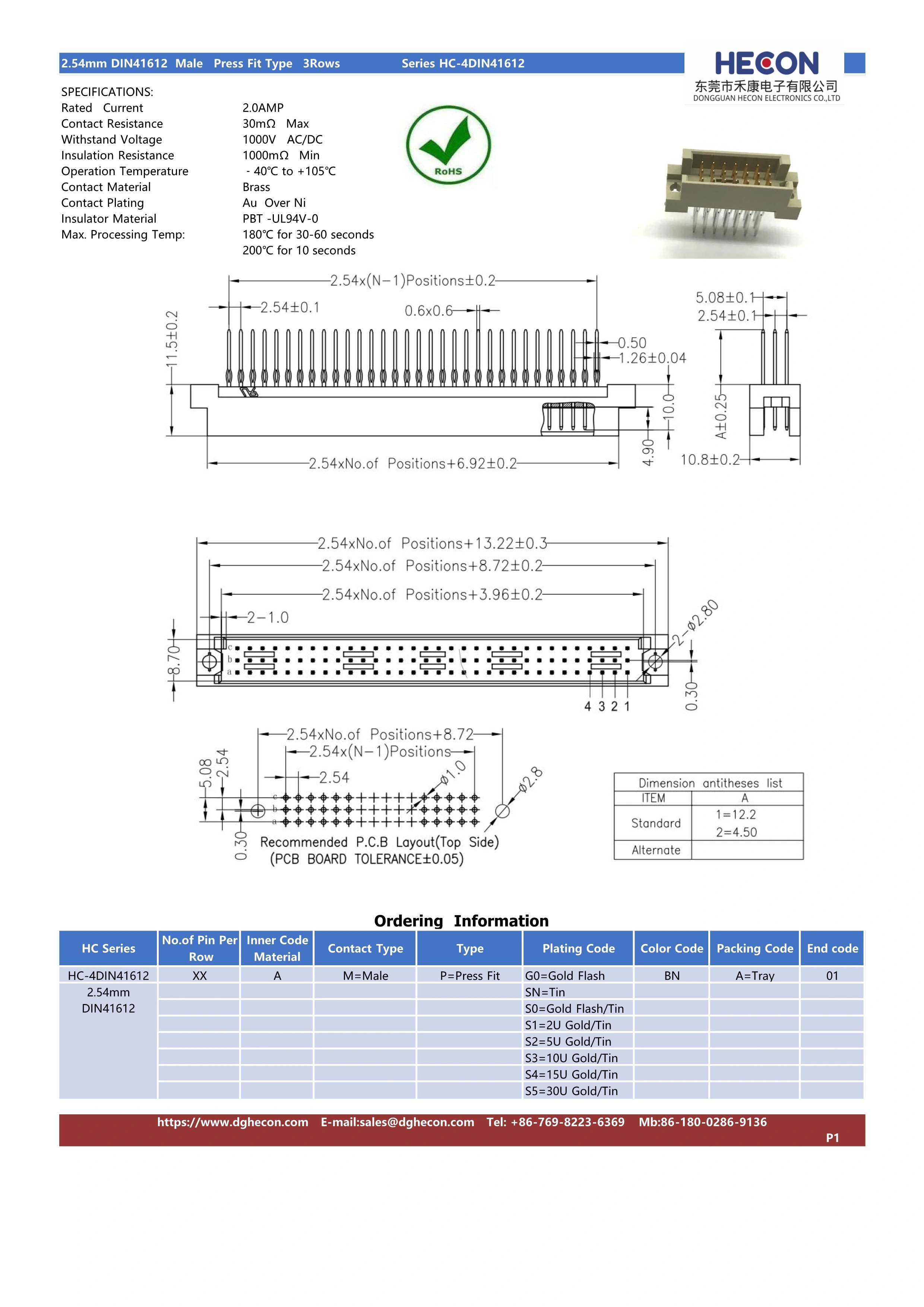

Drawings Details：
We HECON has full complete standard connectors and special customized products service such as DIN41612 DAA and Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
