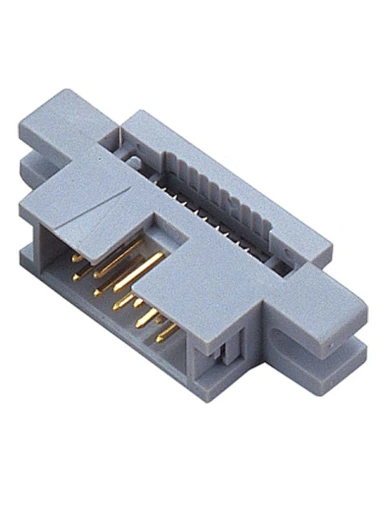

2.54mm Box Header IDC Type

Series No.: HC-BHI410-XXG0WAXX01

Description: 2.54mm Box Header IDC Type

Position: 08P To 64P

Type: IDC

Raw Material: PA6T

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds
