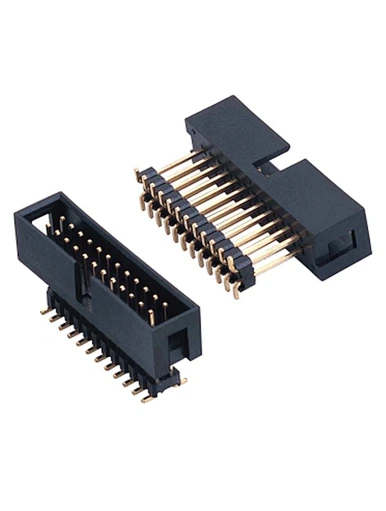

2.54mm Box Header H8.8+H2.5 Pin Header SMT
2.54mm Box Header H8.8+H2.5 Pin Header SMT
HC-BH410DXXMG0CBD00T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-BH410DXXMG0CBD00T01

Description: 2.54mm Box Header H8.8+H2.5 Pin Header SMT

Position: 06P To 64P

Type:  SMT

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                    260°c for 10 Seconds

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

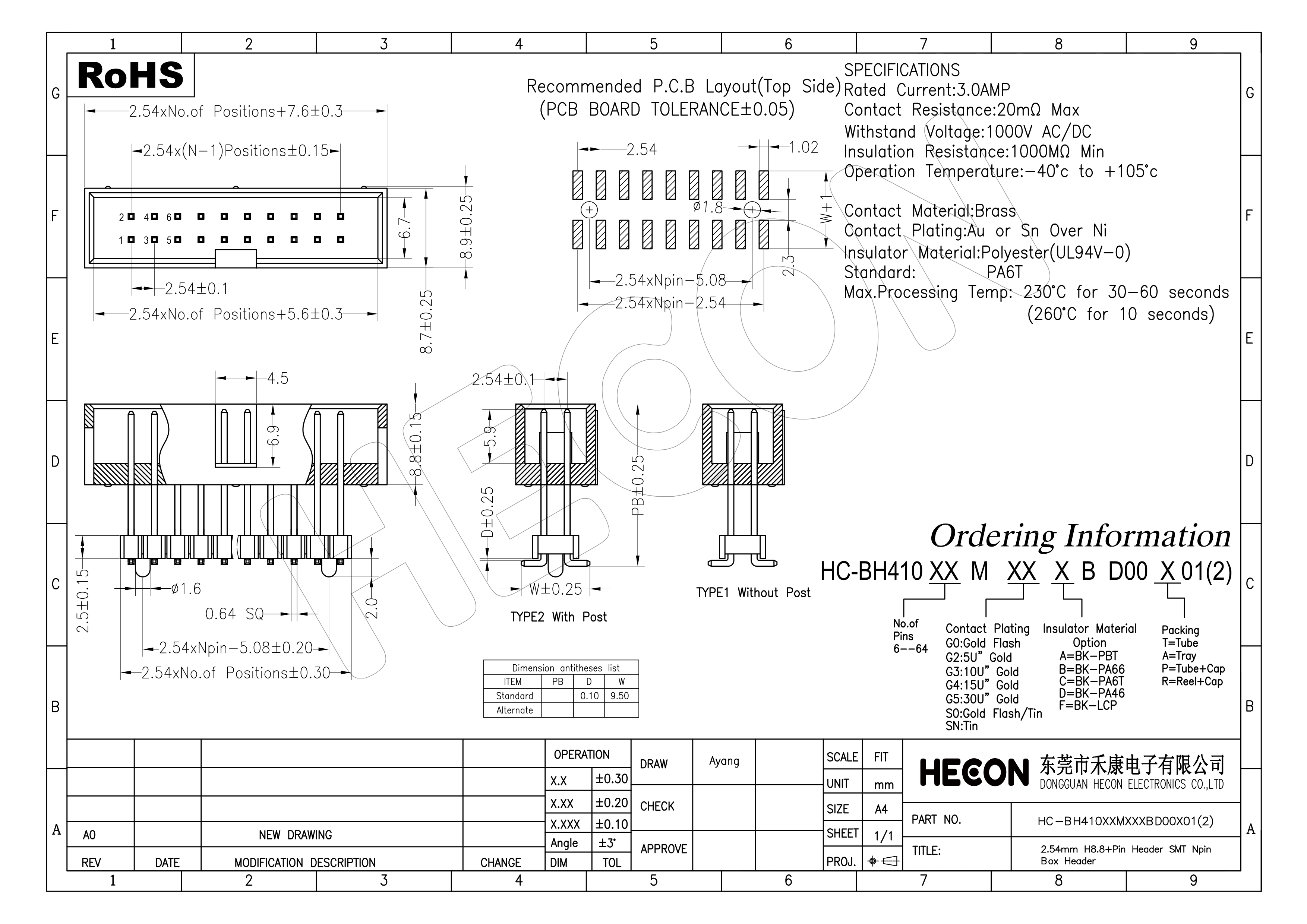

Drawing Details

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
