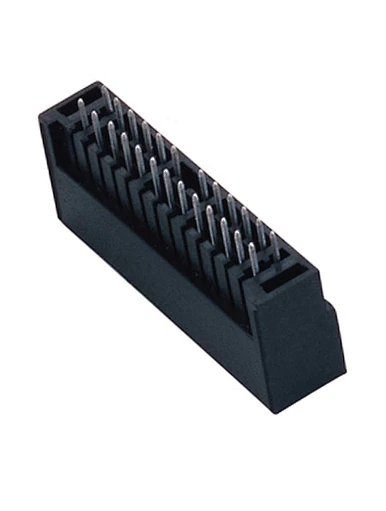

2.54mm Box Header H13.6 Straight

Model NO. HC-BH415-XXSG0CBK00T01

Delivery EXW,FOB

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 15Day

We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

Quantity

Series No.: HC-BH415-XXSG0CBK00T01

Description: 2.54mm Box Header H13.6 Straight

Position: 06P To 64P

Type: Straight

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:3.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

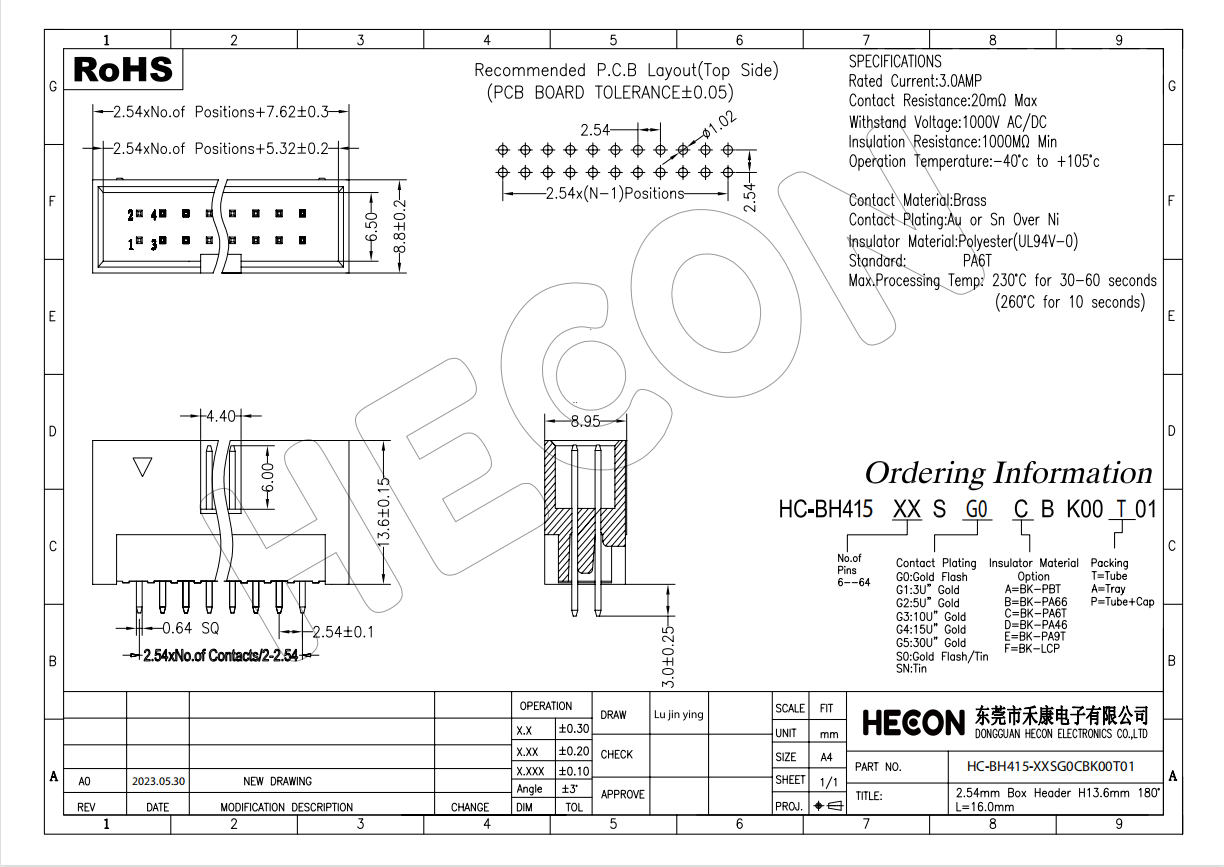

Drawing Details
