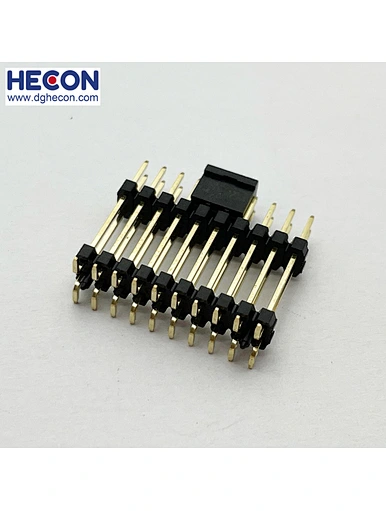

2.0mm Pin header H1.5 Dual Row SMT Dual Body
Series No.:HC-PH515-2210CMG0N019P01
Description: 2.0mm Pin header H1.5 Dual Row SMT Dual Body
Customized size: PA/PB/D Accepted
Position: 2x10P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Specifications
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Plating：Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag /Tube/Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

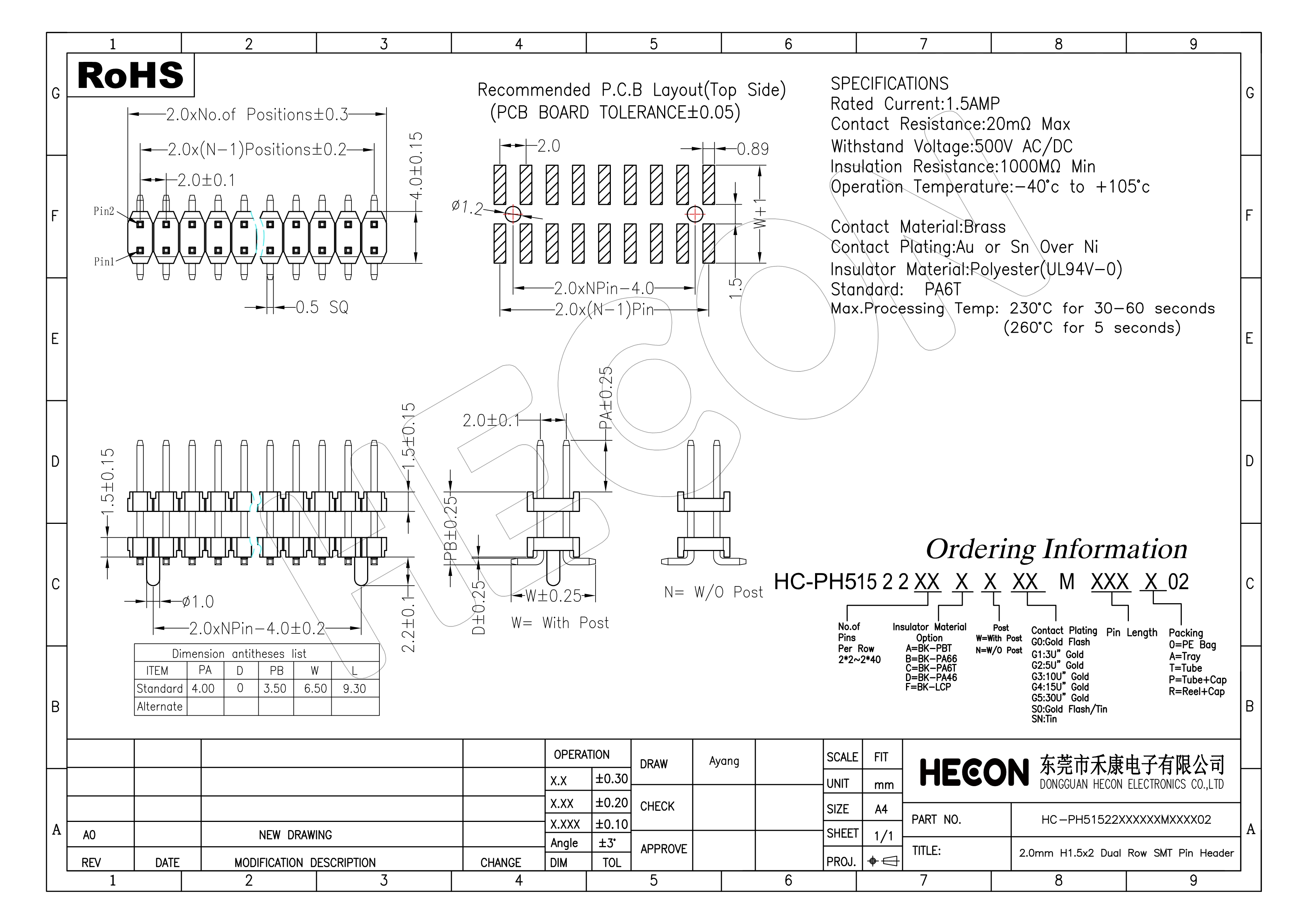

Drawings Details：
We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as Pin header , Female header, Box Header, Ejector Header, IDC , Dip Plug, USB Type- C, RJ11, Pogo pin and Pogo pin connectors also wire harness cable assemblies series & ECG Cable, EKG Cable, USB Cable, IDC Flat Cable,FFC Cable so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
