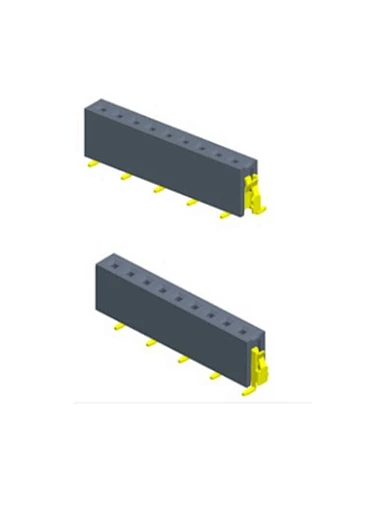

2.0mm Female Header H6.35 Single Row SMT
2.0mm Female Header H6.35 Single Row SMT
HC-FH563-01XXCNG0MYX0X
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-FH563-01XXCNG0MYX0X

Description: 2.0mm Female Header H6.35 Single Row SMT

Position: 1x02P TO 1x40P

Type: SMT

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:1.5AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

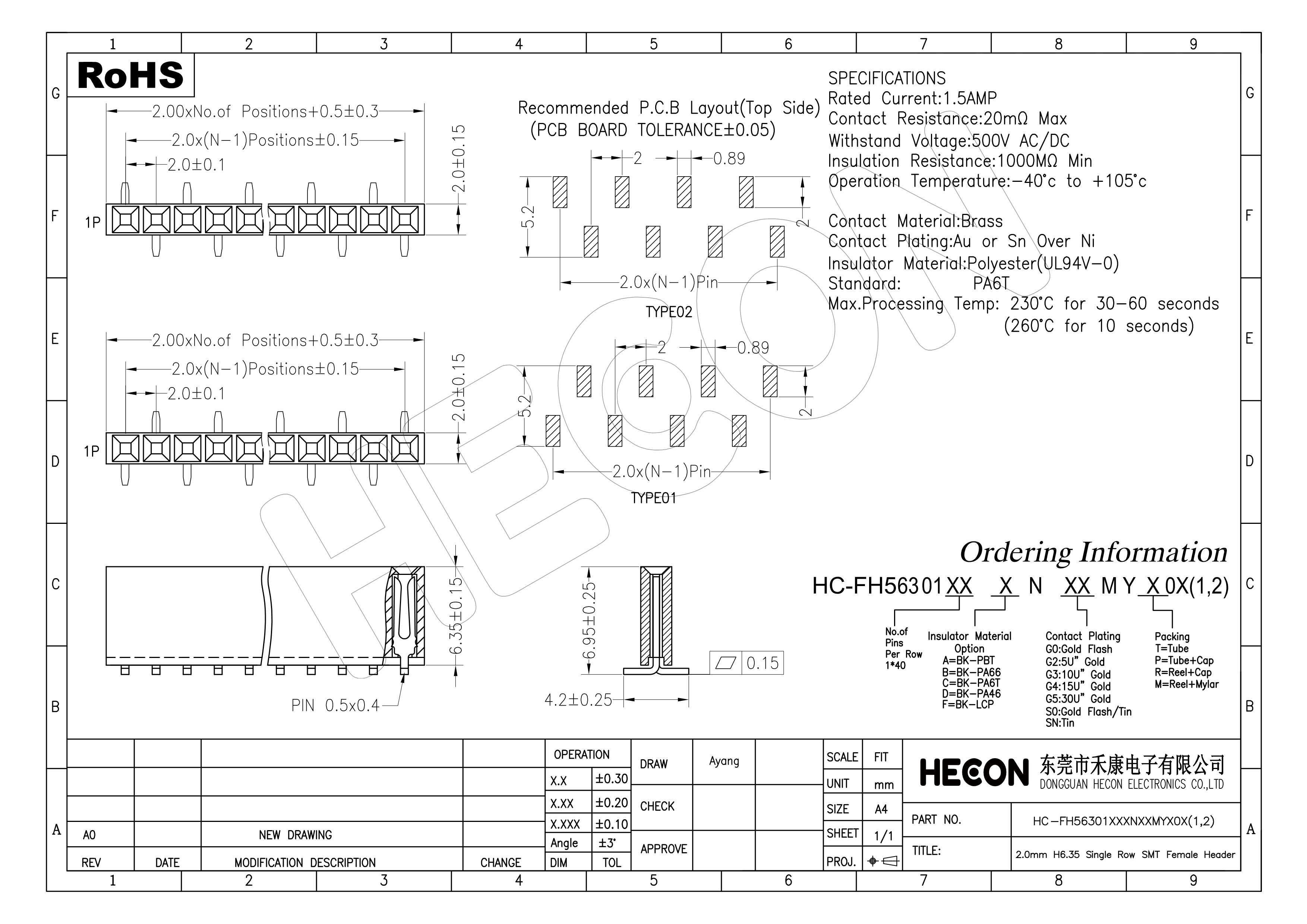

Drawings Details：
