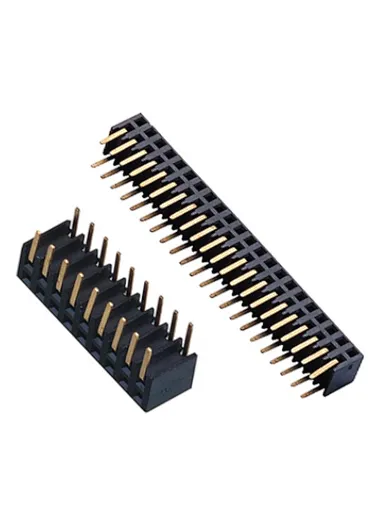

2.0mm Female Header H4.9 Dual Row Right Angle Side Entry
2.0mm Female Header H4.9 Dual Row Right Angle Side Entry
HC-FH549-02XXCNG0RUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-FH549-02XXCNG0RUX01

Description: 2.0mm Female Header H4.9 Dual Row Right Angle Side Entry

Position: 2x02P TO 2x40P

Type: Right Angle Side Entry

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:1.5AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds



Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

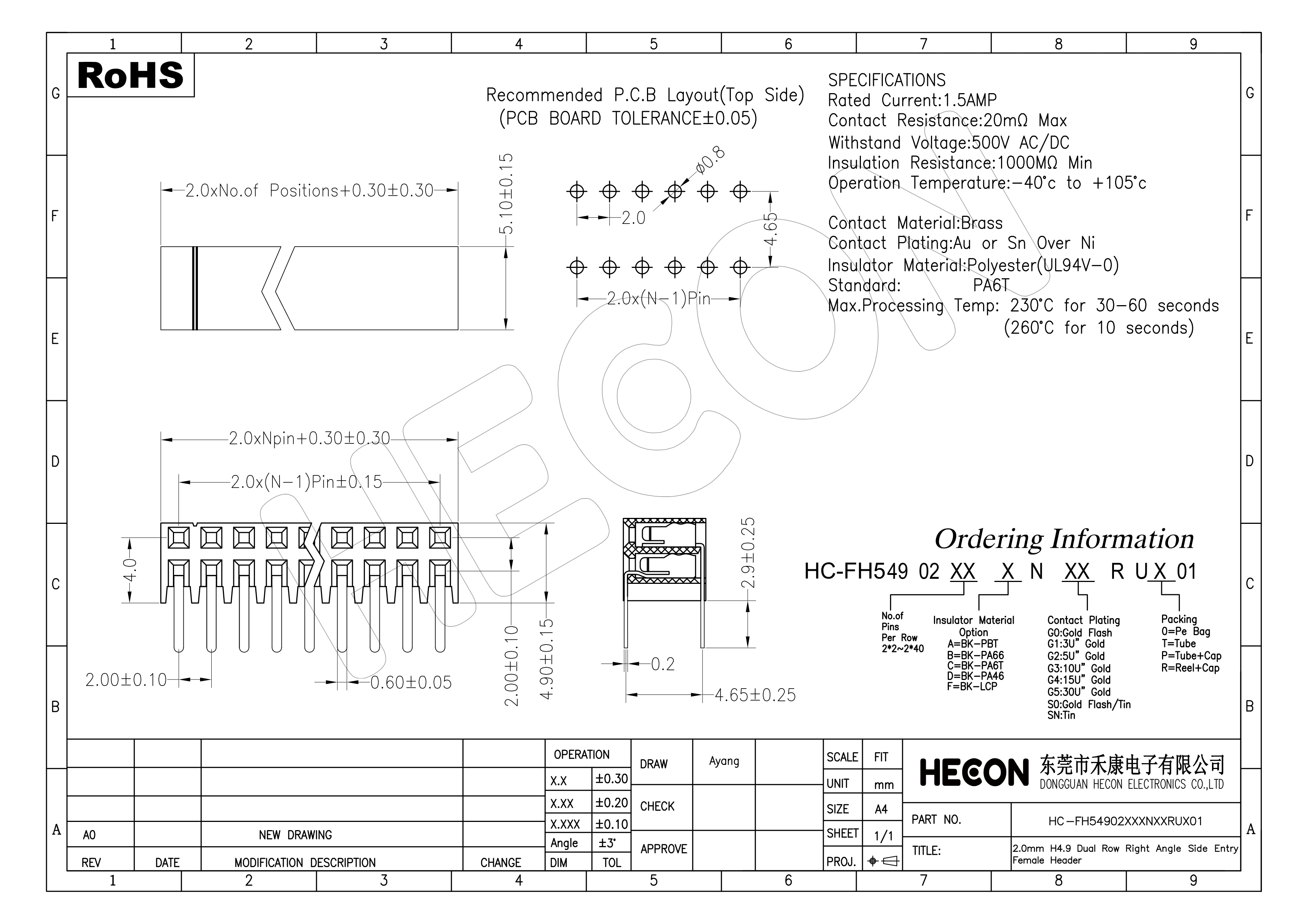

Drawings Details：

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
