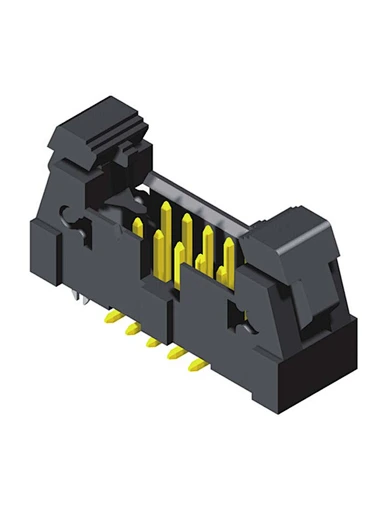

2.0mm Ejector Header Straight
HC-EH520-XXXXSCXMT01
FOB,EXW
500 pieces
500000pieces / Month
China
15Day
HC-EH520-XXXXSCXMT01
Quantity
2.0mm Ejector Header Straight
Series No.: HC-EH520-XXXXSCXMT01
Description: 2.0mm Ejector Header Straight
Position: 06P To 64P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:1.5AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:800mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
