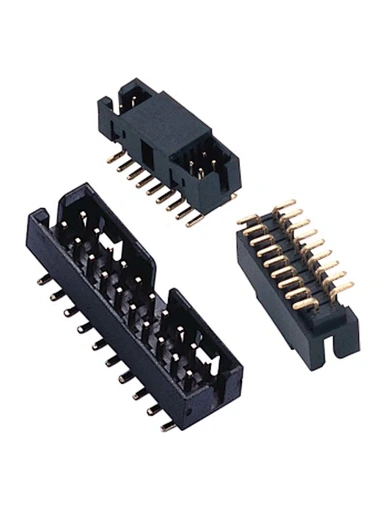

2.0mm Box Header H6.35 SMT Type
HC-BH521-XXMG0CBK00T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

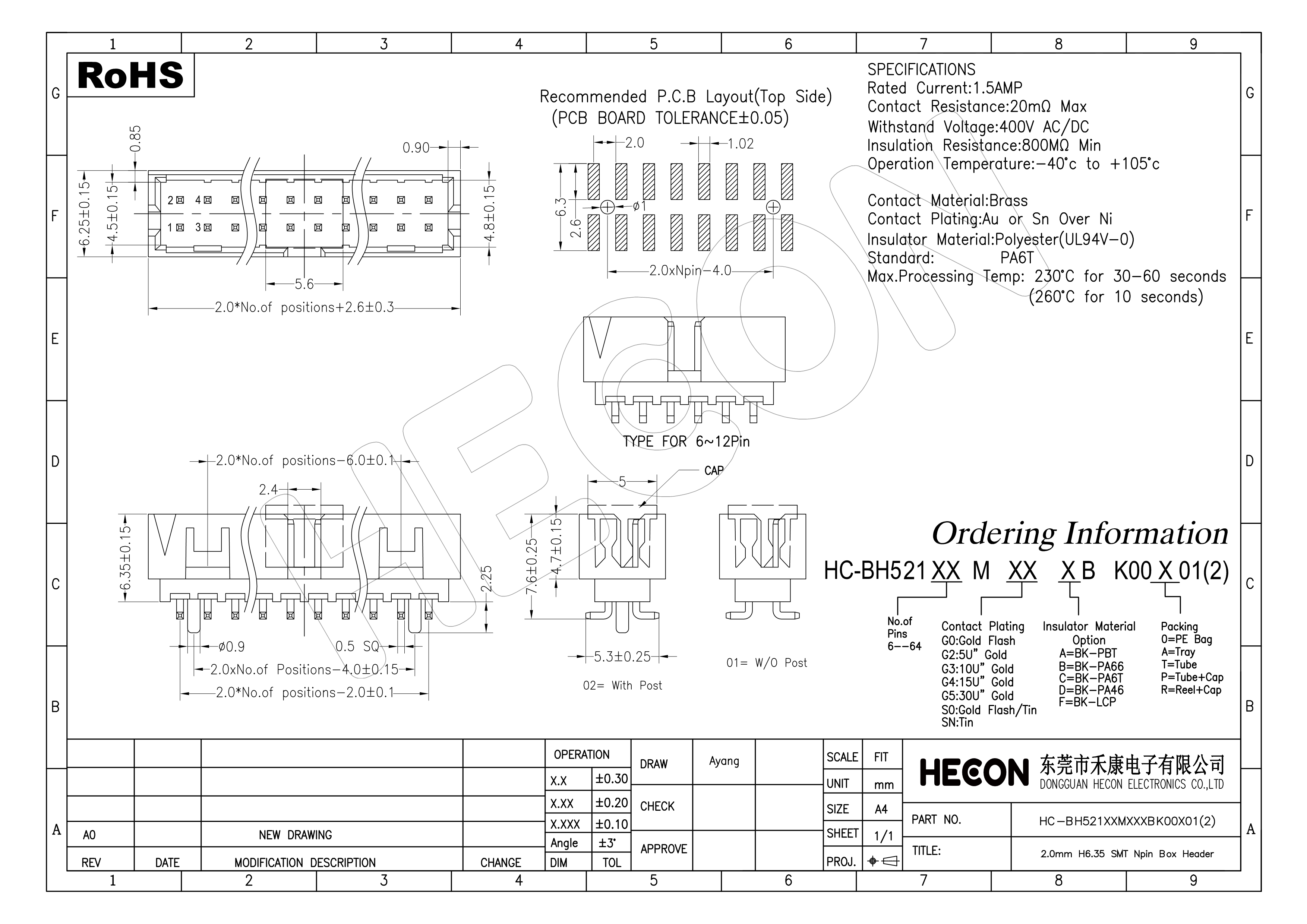

2.0mm Box Header H6.35 SMT Type
Series No.: HC-BH521-XXMG0CBK00T01
Description: 2.0mm Box Header H6.35 SMT Type
Position: 06P To 64P
Type:SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:1.5AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:400V AC/DC
Insulation Resistance:800mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
