Series No.: HC-FH563-03XXCNG0SYX01

Description: 2.0mm Female Header H6.35 Three Rows Straight

Position: 3x02P TO 3x40P

Type: Straight

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:1.5AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

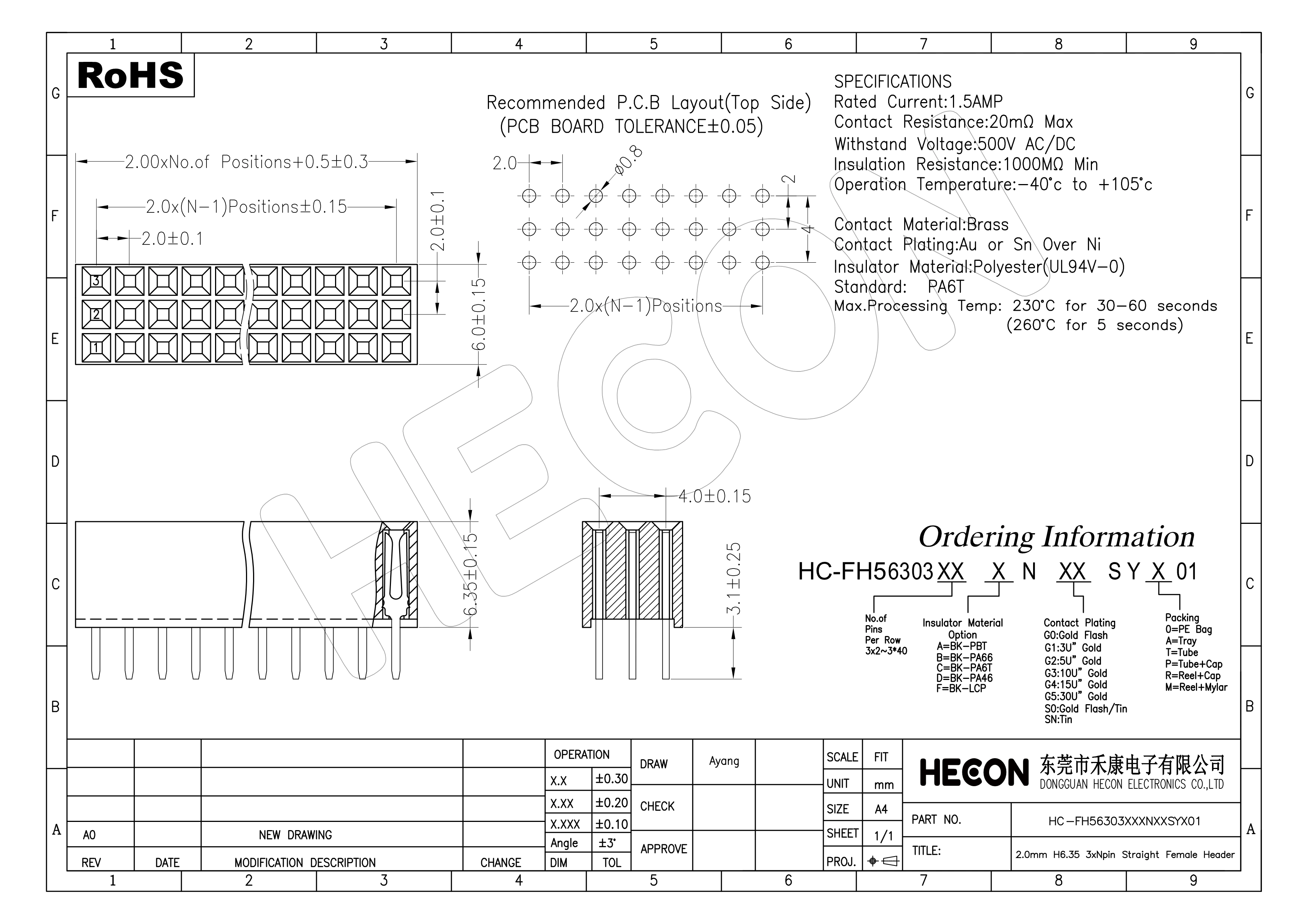

Drawings Details：
