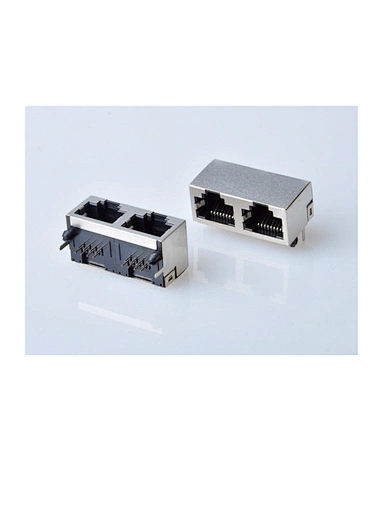

1x2Port Shielded RJ45 Modular Jack Right Angle Without LED
1x2Port Shielded RJ45 Modular Jack Right Angle Without LED
HC-RJ-562S-X2X88-XXXRJ45-1X2
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

No: HC-RJ-562S-X2X88-XXXRJ45-1X2



Free Samples :5-10pcs with 1 weeks



Packing: Tape&Reel /Tray Packing



Delivery time: 20~25 Day



ROHS Compliant



Inquiry: To get samples and Drawings SPEC


RJ45 shielded jack Right Angle Without LED.


RJ45 shielded modular plug Right Angle Without LED.



  1. Material:

  1. Housing : LCP UL94V-0 Black

  1. Contact : Copper Alloy T=0.30

  1. Shell:  Copper Alloy T=0.20

  1. Plating:

  1. Contact: Contact Area Gold Plated Solder Area

Sn Plated Under Plated Nickel


  1. Shell : Nickel Plated

  1. SPECIFICATION:


Current


1.5 AMP


Voltage


125V RMS


Withstanding Voltage


500V AC


Contact Resistance


30mΩ   Maximum


Insulation Resistance


500mΩ   Minimum


Operation Temperature


﹣20℃ to +85℃



We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as  D-sub Connector, MICRO MATCH CONNECTOR USB Type- C,RJ11 Connector, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
