1.778mm IC Socket H2.8mm Straight Male Type L=10.0MM Tube Packing
1.778mm IC Socket H2.8mm Straight Male Type L=10.0MM Tube Packing
HC-ICM061-28XXXSXA100T01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.:HC-ICM061-28XXXSXA100T01

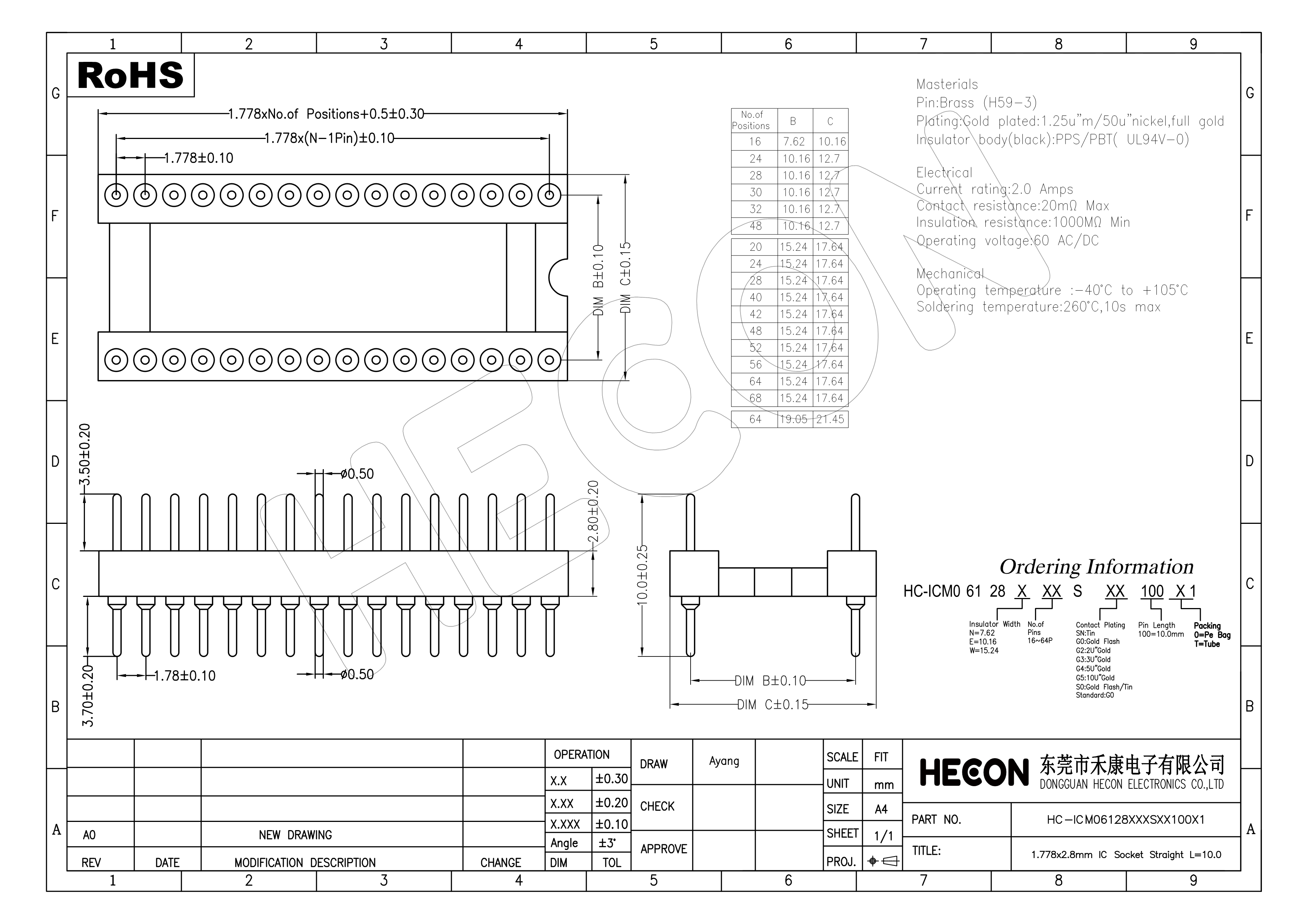

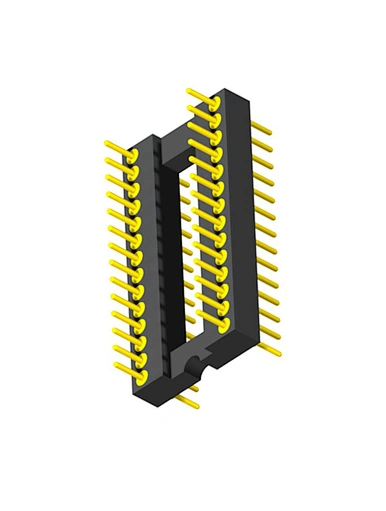

Description: 1.778mm IC Socket H2.8mm Straight Male Type L=10.0MM Tube Packing

Position:  16P TO 64P

Type: Straight

Package : Tube Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Contact Material   ：Brass (H59-3)

Contact Plating   ： Gold Flash

Insulator Material  ： PPS/BT (UL94V-0)

Rated   Current  ： 2.0 AMPS

Contact Resistance ：20mΩ   Max

Insulation Resistance ：1000mΩ   Min

Operating Voltage ： 60  AC/DC

Operation Temperature：﹣40℃ to +105℃

Soldering Temperature：260℃, 10s max
