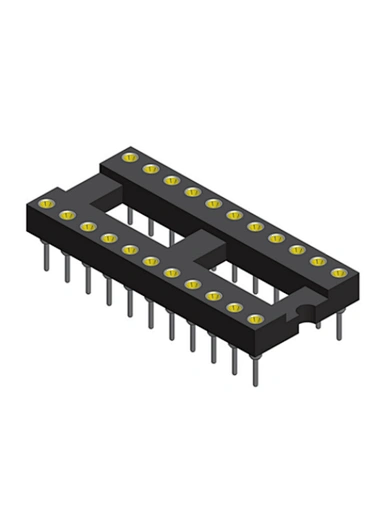

1.778mm IC Socket H=2.8mm Straight Female Type L=7.40MM Tube Packing
HC-ICF061-28-XXXSXA740T01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity
Series No.:HC-ICF061-28-XXXSXA740T01
Description: 1.778mm IC Socket H=2.8mm Straight Female Type L=7.40MM Tube Packing
Position: 16P TO 64P
Type: Straight
Package : Tube Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

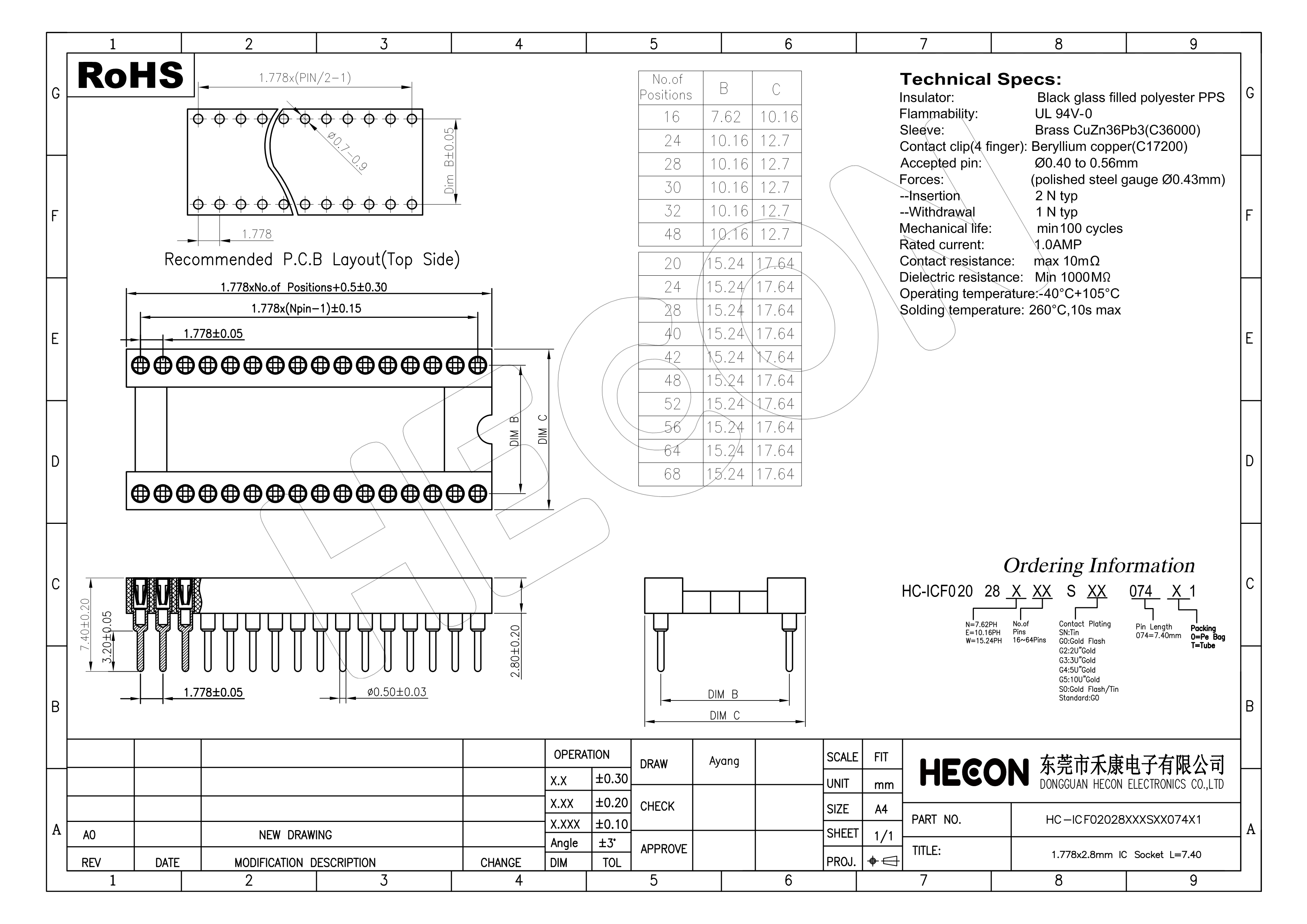

Specifications
Insulator Material ： PPS/BT (UL94V-0)
Rated Current ： 1.0 AMPS
Contact Resistance ：10mΩ Max
Insulation Resistance ：1000mΩ Min
Operation Temperature：﹣40℃ to +105℃
Soldering Temperature：260℃, 10s max
