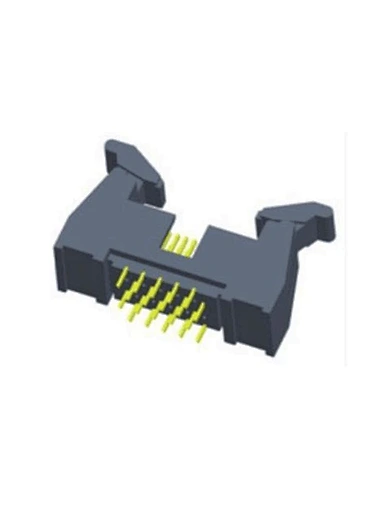

1.27x2.54mm Ejector Header Straight Four Rows Foot
1.27x2.54mm Ejector Header Straight Four Rows Foot
HC-EH641-XXXXSCXLT01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
HC-EH641-XXXXSCXLT01
Quantity

1.27x2.54mm Ejector Header Straight Four Rows Foot

Drawing Download

Series No.: HC-EH641-XXXXSCXLT01

Description: 1.27x2.54mm Ejector Header Straight Four Rows Foot

Position: 10P To 100P

Type: Straight

Raw Material: PA6T

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds
