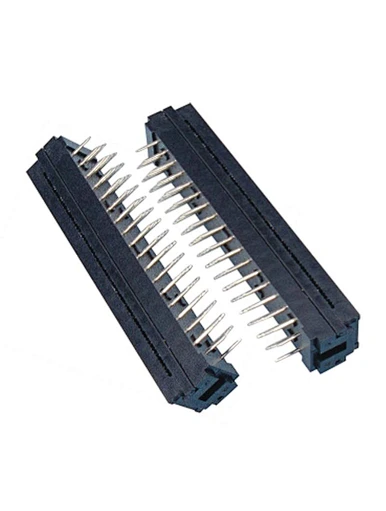

1.27x2.54mm DIP Connectors
1.27x2.54mm DIP Connectors
HC-DIP40-XXBXAXT01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-DIP40-XXBXAXT01

Description:1.27x2.54mm DIP Connectors

Position: 10P To 80P

Type: DIP

Raw Material: PBT-UL94V-0

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

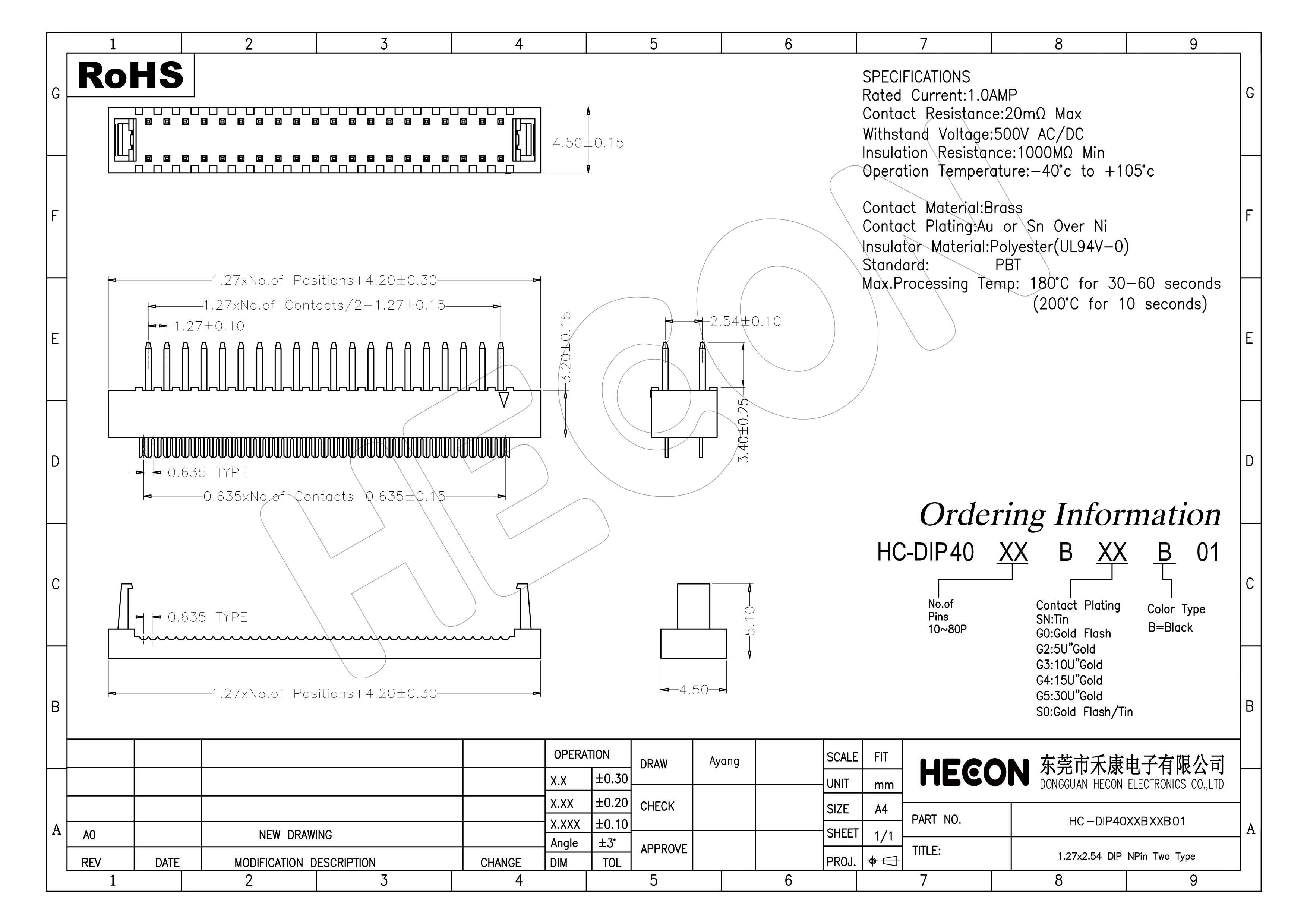

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
