1.27x2.54mm Box Header H10.0 Straight
HC-BH641-XXSG0CK00T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity
1.27x2.54mm Box Header H10.0 Straight
Series No.: HC-BH641-XXSG0CK00T01

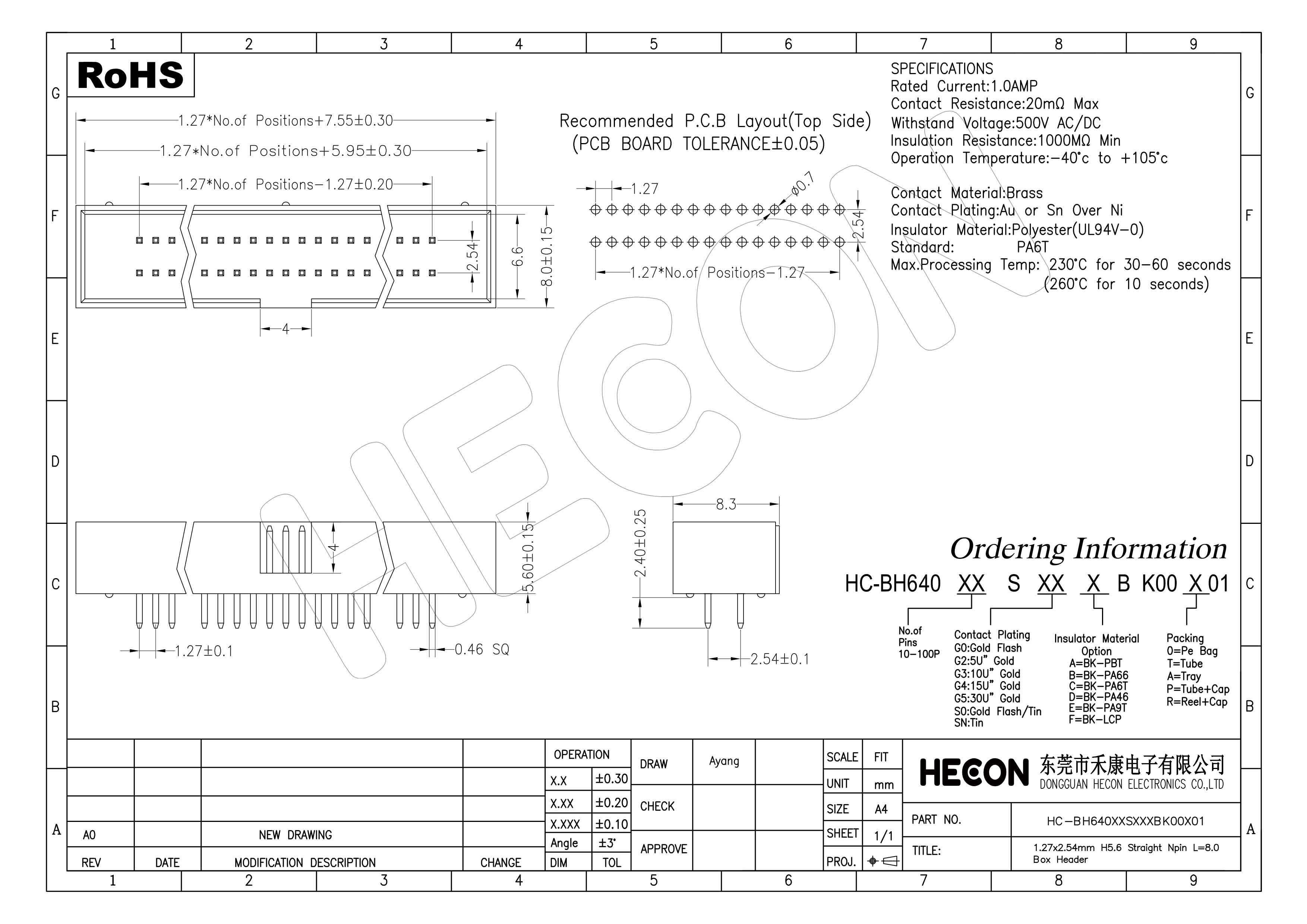

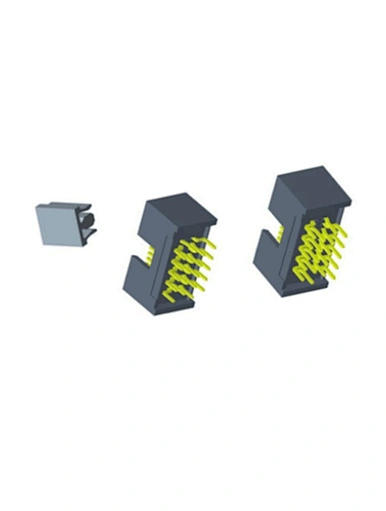

Description: 1.27x2.54mm Box Header H10.0 Straight
Position: 10P To 100P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
