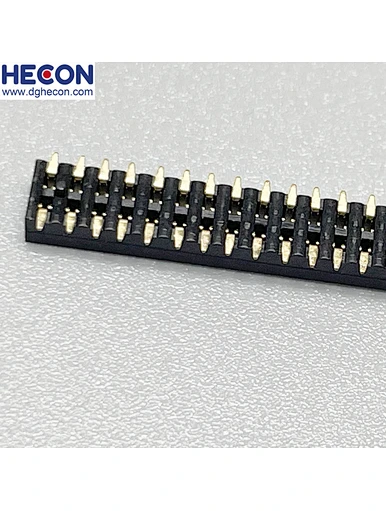

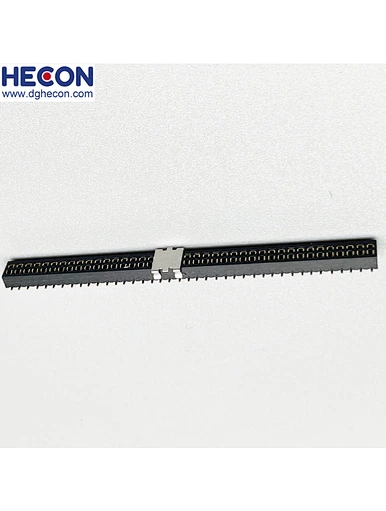

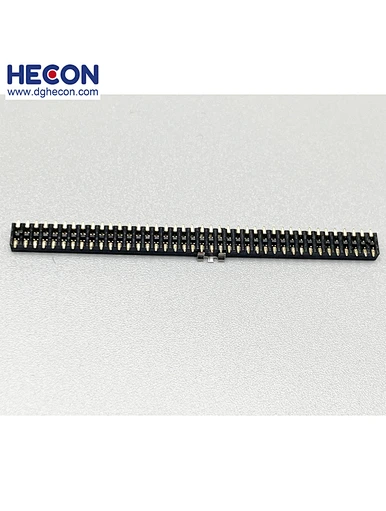

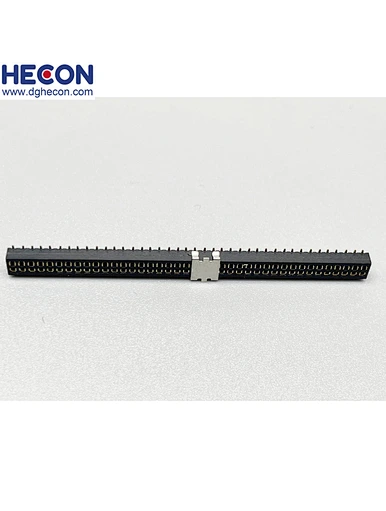

1.27mm SMT Female Header Top Entry U Metal Cap
HC-FH720-02X40CNG0MUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
Series No.: HC-FH720-02X40CNG0MUX01
Description: 1.27mm Female Header H2.15 Dual Row SMT Top Entry U Metal
Position: 2x40P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Description: 1.27mm Female Header H2.15 Dual Row SMT Top Entry U Metal
Position: 2x40P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Quantity
Series No.: HC-FH720-02X40CNG0MUX01
Specifications
Rated Current:1.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Drawings Details：
