Series No.: HC-PH720-11XXXSXXNXXXX01

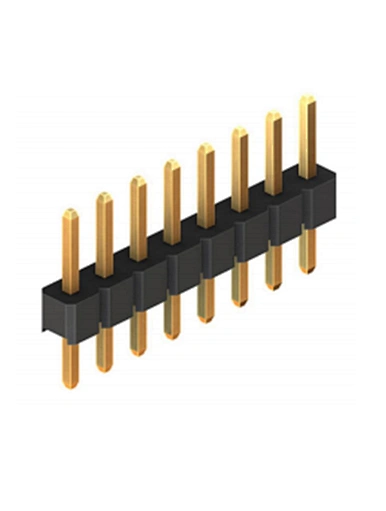

Description: 1.27mm Pin Header H2.0 Single Row Straight
Customized size: PA/PC Accepted
Position: 1x02P TO 1x50P
Type: Straight
Raw Material: PA6T
Contact Material: Brass
Specifications
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Plating：Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

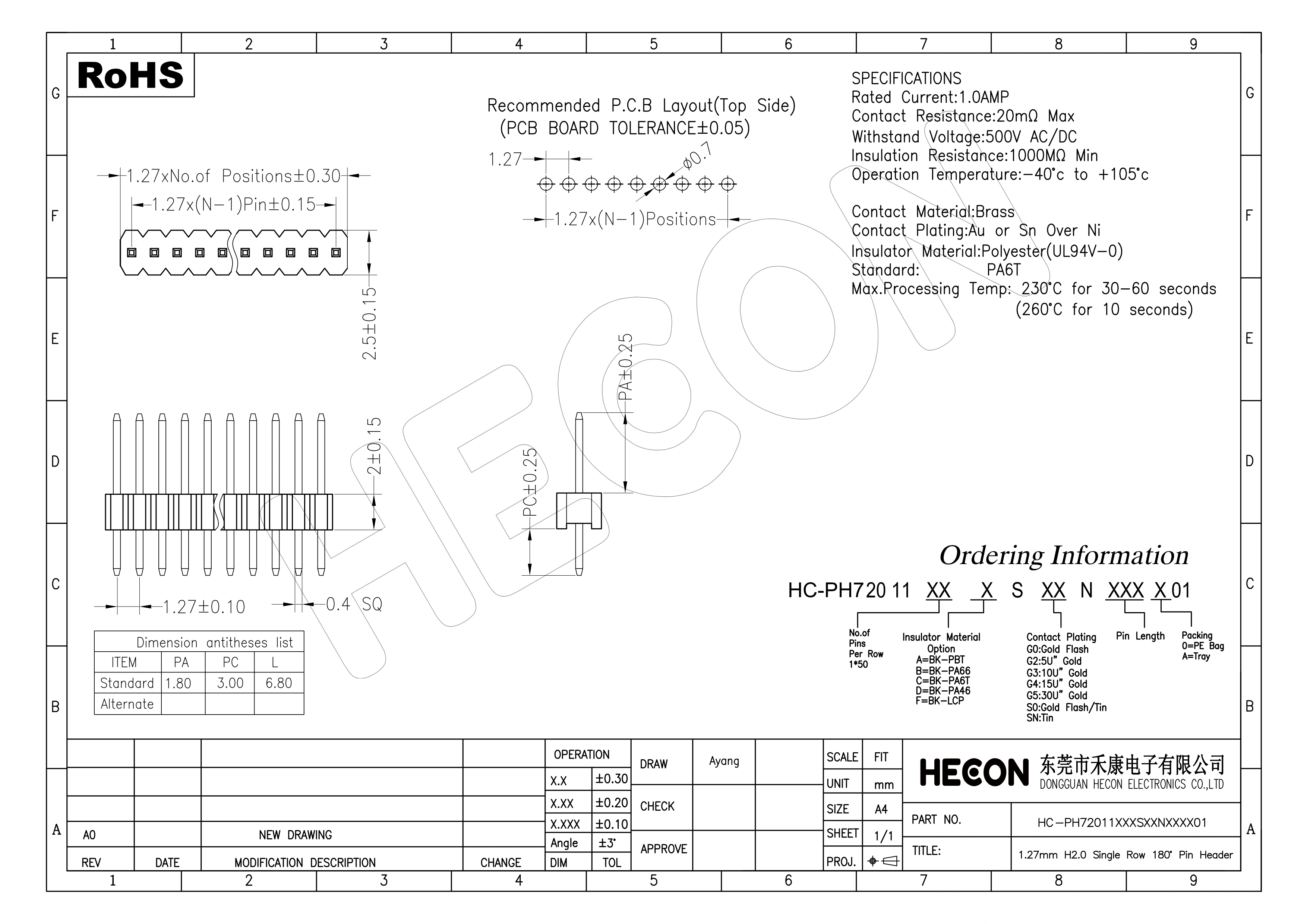

Drawings Details：
