Part Number: HC-PX-IDC-XXFISNANT01

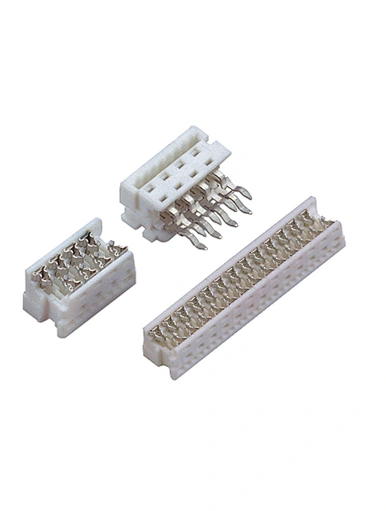

Description: 1.27mm Picoflex Header IDC-Type
PIN Way:04P-26P
SPECIFICATIONS:
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Material: Phosphor Bronze
Contact Plating: SN Over NI
Insulator Material: PBT-UL94V-0
Max.Processing Temp: 180°c for 30-60 Seconds
200°c for 10 Seconds
Package: Tube/Tray/Tape&Reel
Samples :5-10pcs with in 1 Weeks
Delivery date:2-3 Weeks
RoHS Compliant

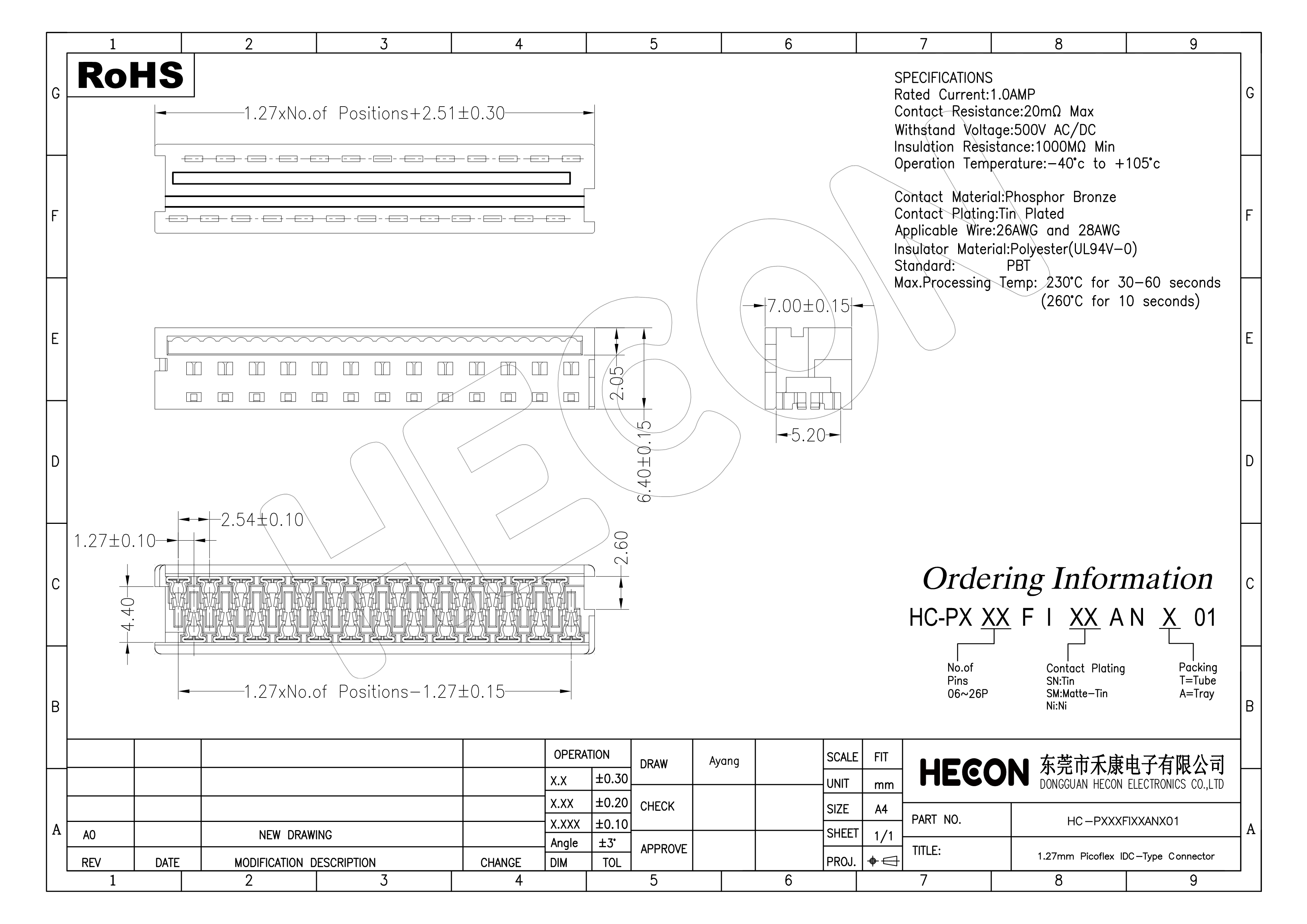

Drawings Details：
