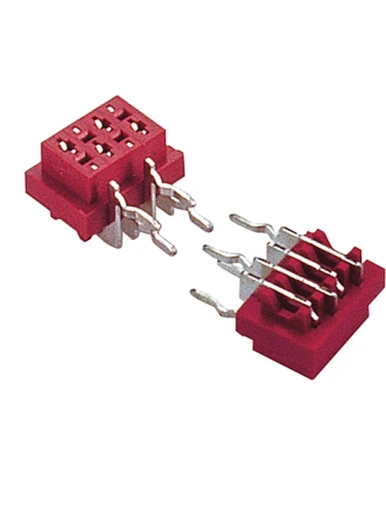

1.27mm Micro Match Connectors Female Header Right Angle 90°DIP Type
1.27mm Micro Match Connectors Female Header Right Angle 90°DIP Type
HC-MH-XXFRSNDNT01
EXW,FOB
500 pieces
500000pieces / Month
china
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number: HC-MH-XXFRSNDNT01


Description: 1.27mm Micro Match Connectors Right Angle Female Type


PIN Way:04P-26P


SPECIFICATIONS:


Rated Current:1.0AMP


Contact Resistance: 20mΩ  Max


Withstand Voltage:500V AC/DC


Insulation Resistance:1000mΩ Min


Operation Temperature: -40°c to +105°c


Contact Material: Brass


Contact Plating: SN Over NI


Insulator Material: PA46-UL94V-0


Max.Processing Temp: 180°c for 30-60 Seconds

                                     200°c for 10 Seconds


Package: Tube/Tray/Tape&Reel


Samples :5-10pcs with in 1 Weeks


Delivery date:2-3 Weeks


RoHS Compliant

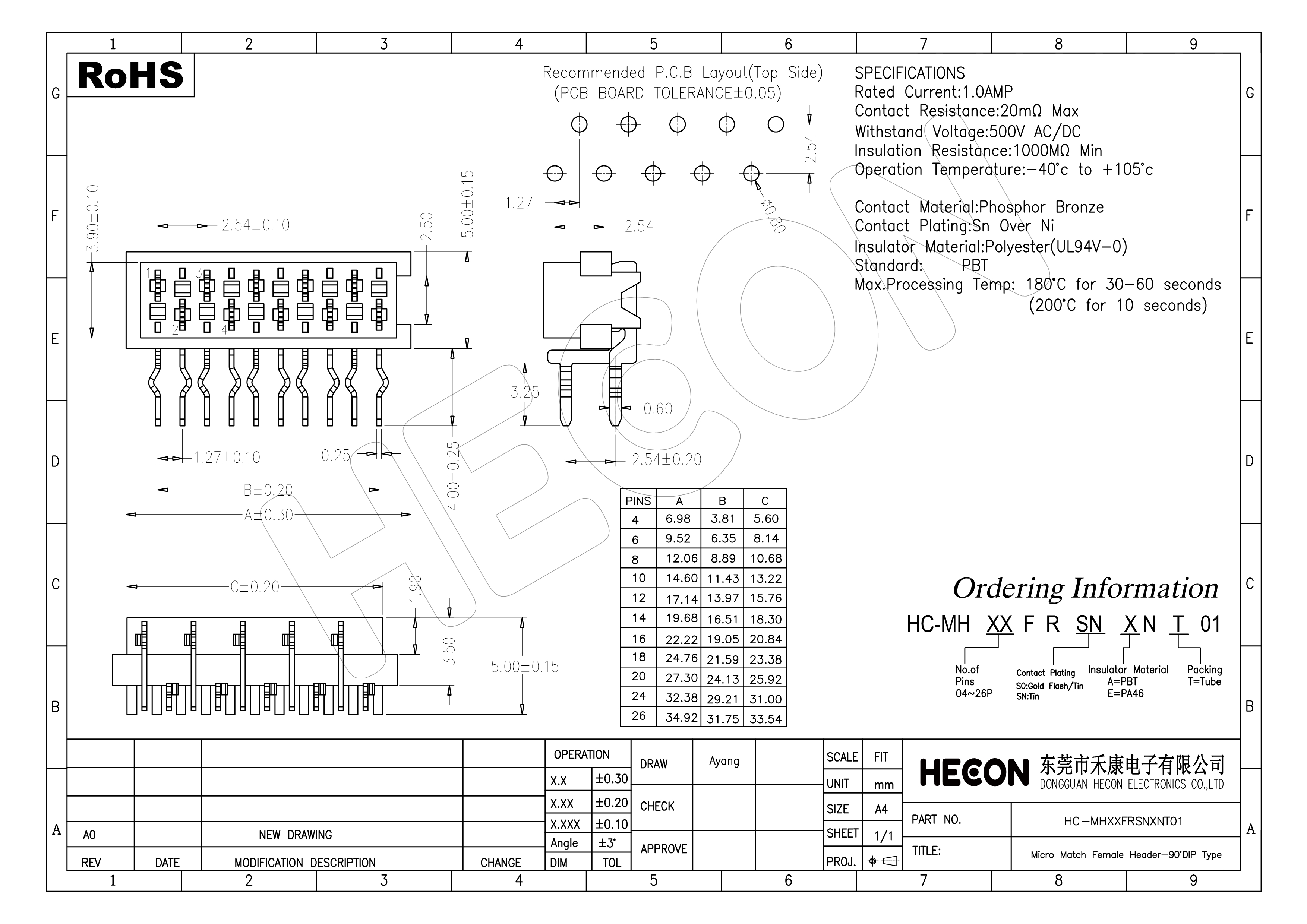

Drawings Details：





We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as Micro Match Connectors, USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
