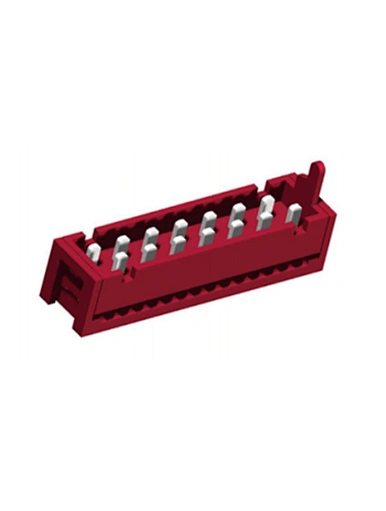

1.27mm Micro Match Connectors Male IDC Type
1.27mm Micro Match Connectors Male IDC Type
HC-MH-XXMISNANT02
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

Part Number: HC-MH-XXMISNANT02



Description: 1.27mm Micro Match Connectors Male IDC Type



PIN Way:04P-26P




SPECIFICATIONS:



Rated Current:1.0AMP



Contact Resistance: 20mΩ  Max



Withstand Voltage:500V AC/DC



Insulation Resistance:1000mΩ Min



Operation Temperature: -40°c to +105°c



Contact Material: Brass



Contact Plating: SN Over NI



Insulator Material: PBT-UL94V-0



Max.Processing Temp: 180°c for 30-60 Seconds

                                     200°c for 10 Seconds


Package: Tube/Tray/Tape&Reel



Samples :5-10pcs with in 1 Weeks



Delivery date:2-3 Weeks



RoHS Compliant

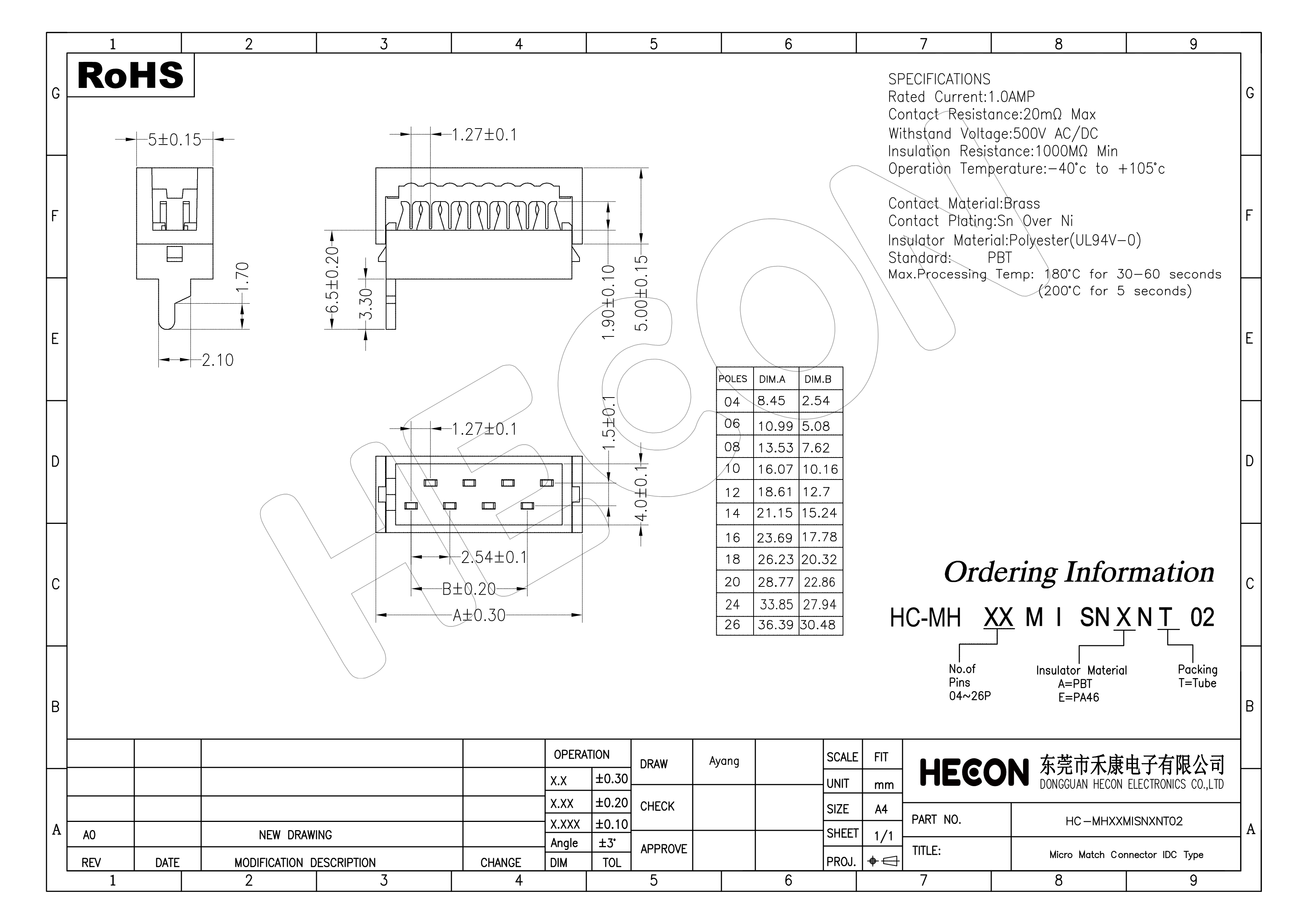

Drawings Details：






We DONGGUAN HECON ELECTRONICS CO.,LTD has full complete standard connectors and special customized products service such as pcb connector, IDC Connector USB Type- C, Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
