1.27mm Micro Match-PCB Connector|DONGGUAN HECON

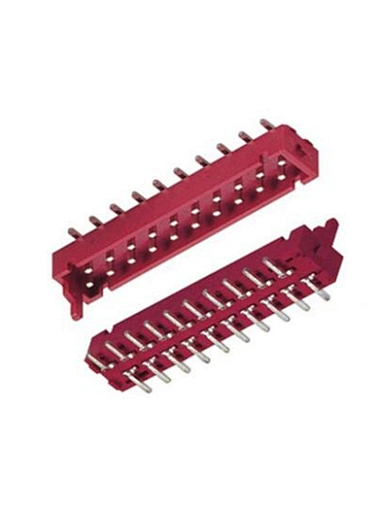

1.27mm Micro Match Box Header SMT Male Type

Model NO. HC-MH-XXMMSNDNT01

Delivery EXW,FOB

Minimum order quantity 500 pieces

Supply Ability 500000pieces / Month

Country of Origin China

Stock Time 15Day

Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards

Quantity

Part Number: HC-MH-XXMMSNDNT01

Description: 1.27mm Micro Match Box Header SMT Male Type

PIN Way:04P-26P

SPECIFICATIONS:

Rated Current:1.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Contact Material: Brass

Contact Plating: SN Over NI

Insulator Material: PA46-UL94V-0

Max.Processing Temp: 180°c for 30-60 Seconds

200°c for 10 Seconds

Package: Tube/Tray/Tape&Reel

Samples :5-10pcs with in 1 Weeks

Delivery date:2-3 Weeks

RoHS Compliant

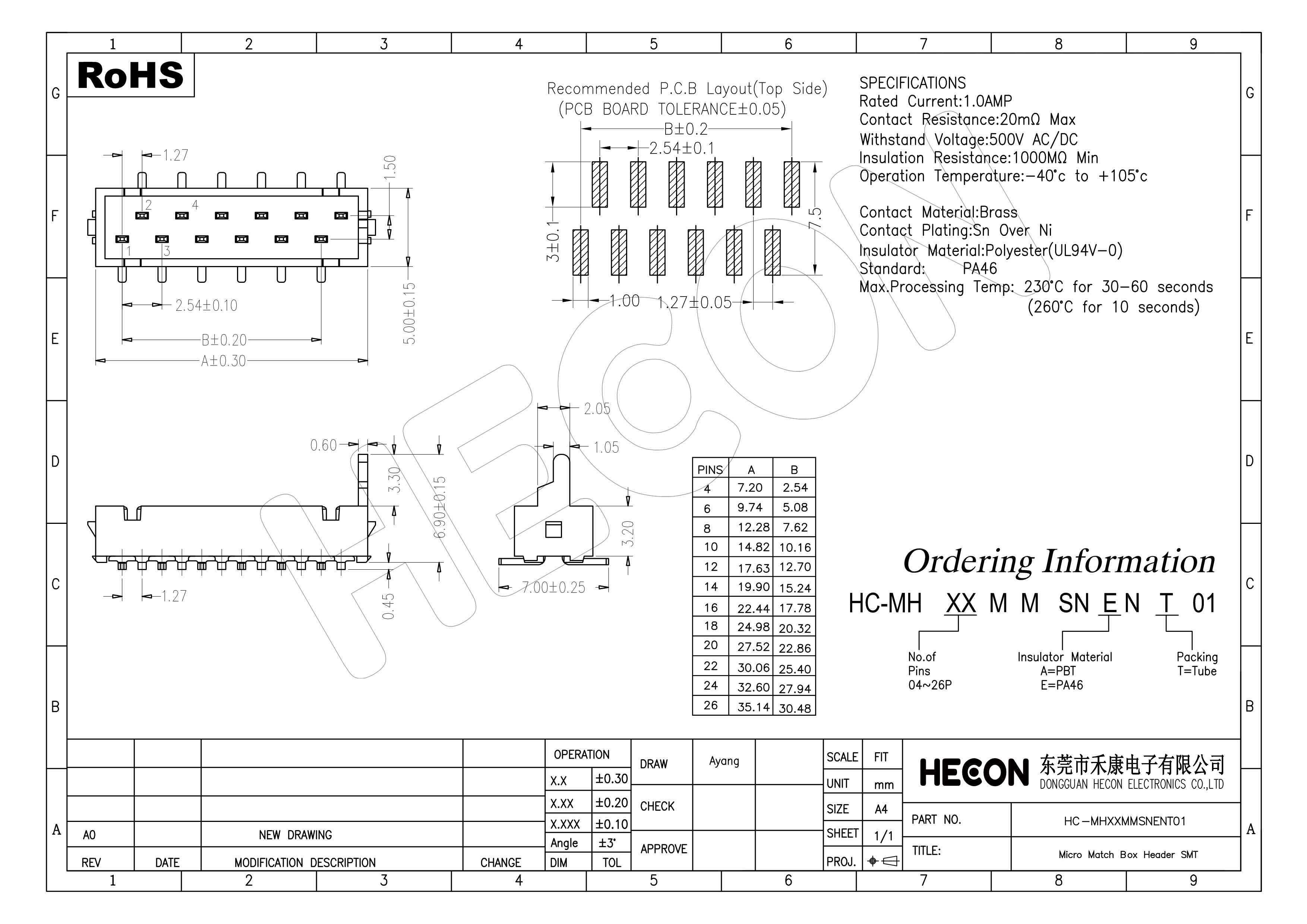

Drawings Details：
