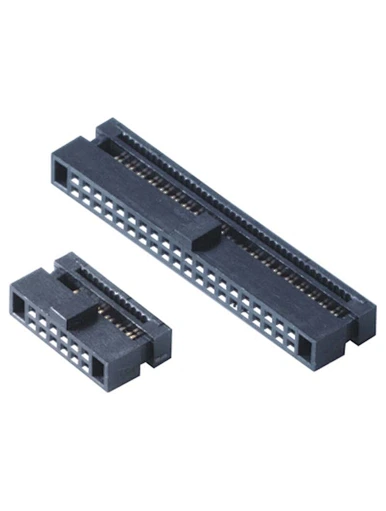

1.27mm IDC Connectors U Type

Series No.: HC-IDC32-XXUPG0AWT01

Description:1.27mm IDC Connectors U Type

Position: 10P To 100P

Type: U Type

Raw Material: PBT-UL94V-0

Contact Material: Phosphor Bronze

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

260°c for 10 Seconds
