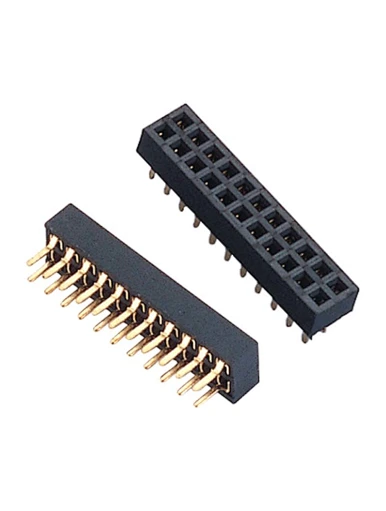

1.27mm Female Header H2.0 Dual Row Straight Type
1.27mm Female Header H2.0 Dual Row Straight Type
HC-FH720-02XXCNG0SUX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-FH720-02XXCNG0SUX01

Description: 1.27mm Female Header H2.0 Dual Row Straight Type

Position: 2x02P To 2x50P

Type: Straight

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

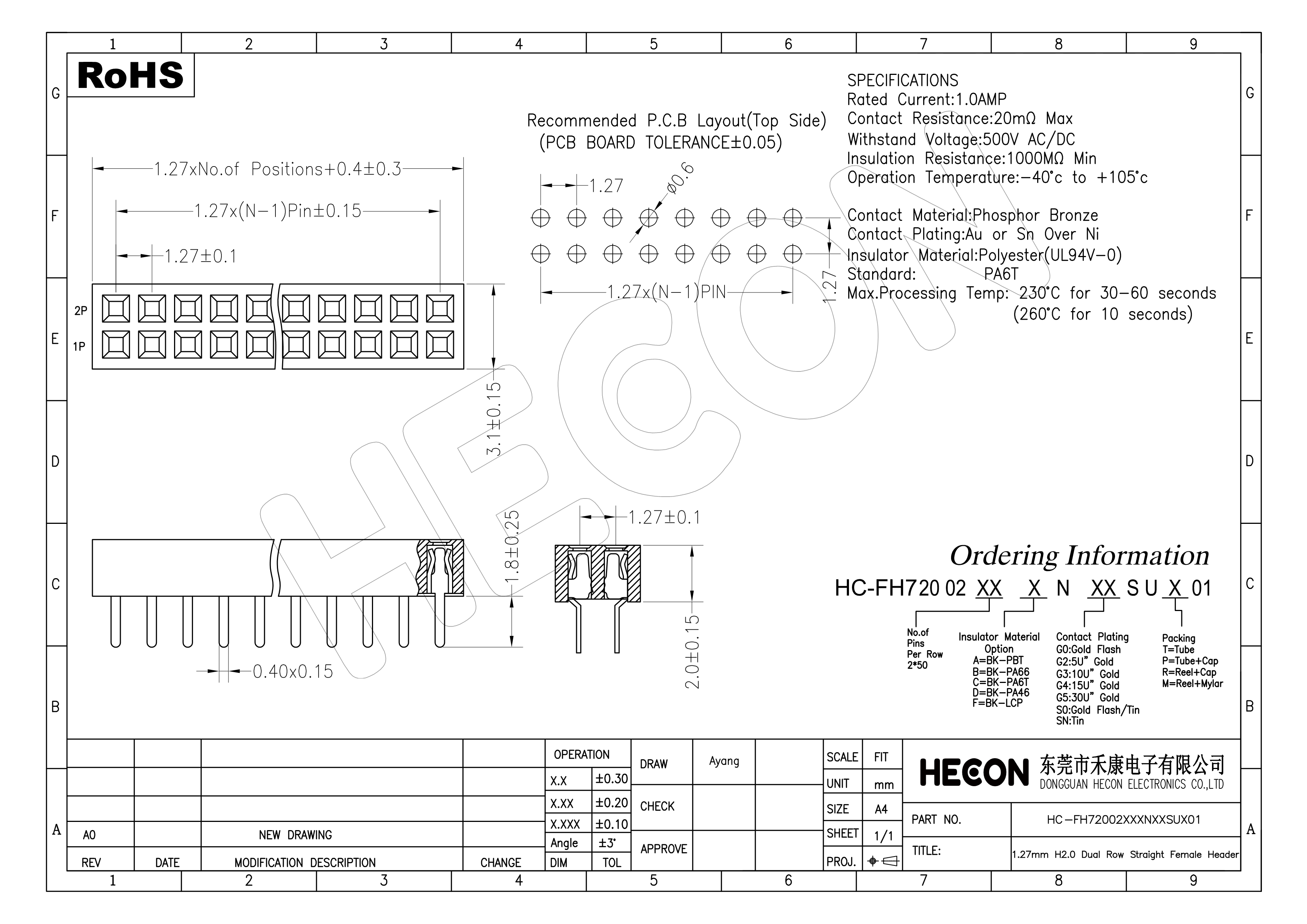

Drawings Details：

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
