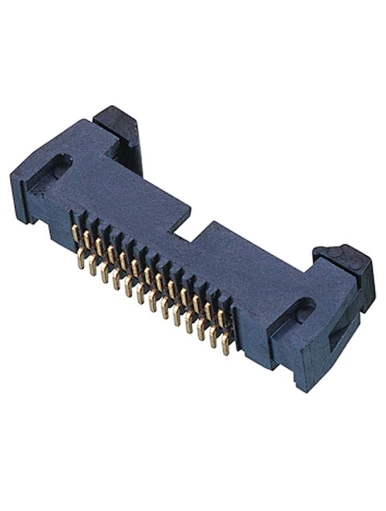

1.27mm Ejector Header SMT Type

Drawing Download

Series No.: HC-EH730-XXXXMCXMT01

Description: 1.27mm Ejector Header SMT Type

Position: 06P To 80P

Type: SMT

Raw Material: PA6T

Contact Material: Brass

Package : PE Bag/ Tube /Tray or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

Specifications

Rated Current:1.0AMP

Contact Resistance: 20mΩ  Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                    260°c for 10 Seconds
