1.27mm Box Header H5.7 SMT Type
HC-BH732-XXMG0CBK00T01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity

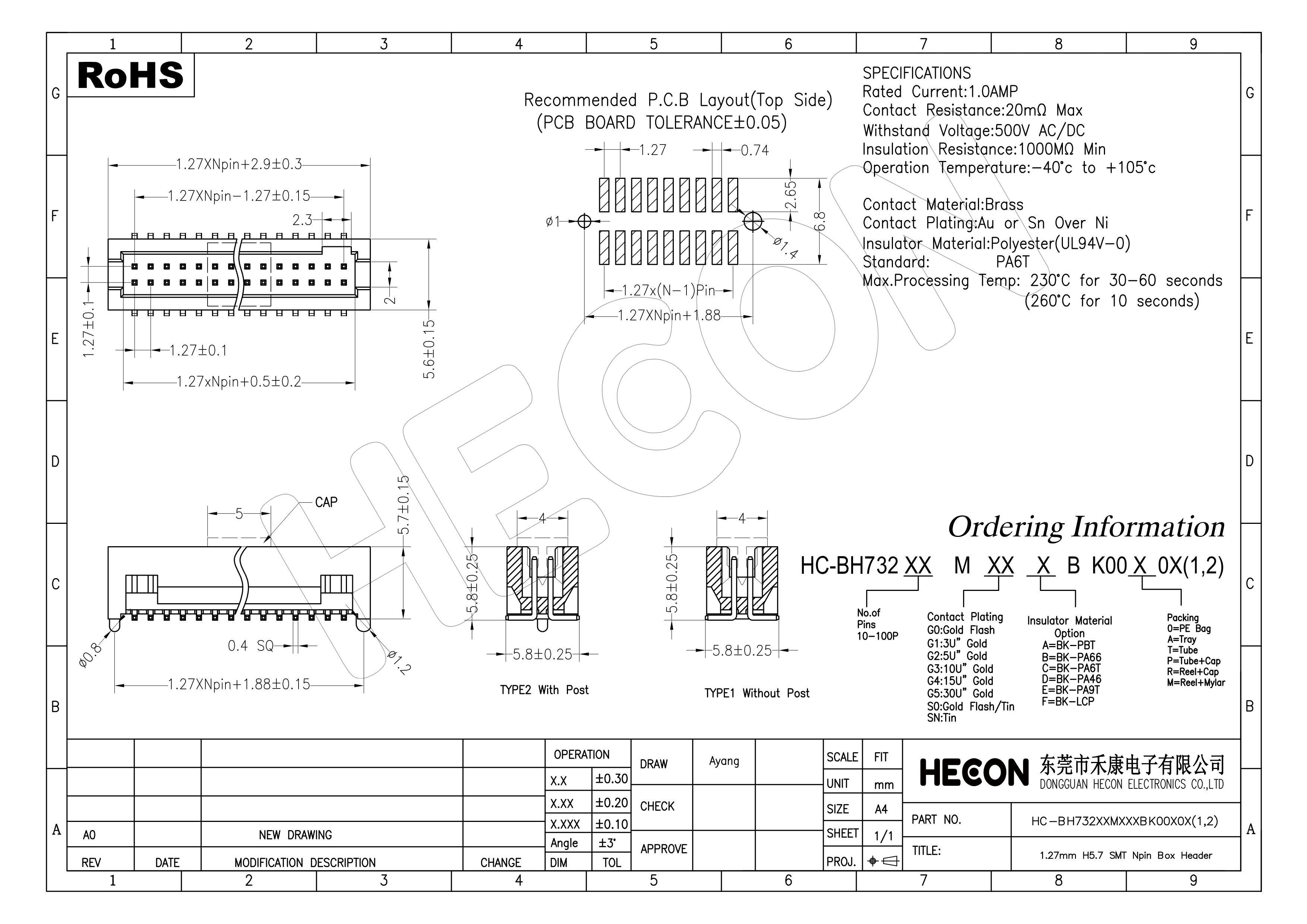

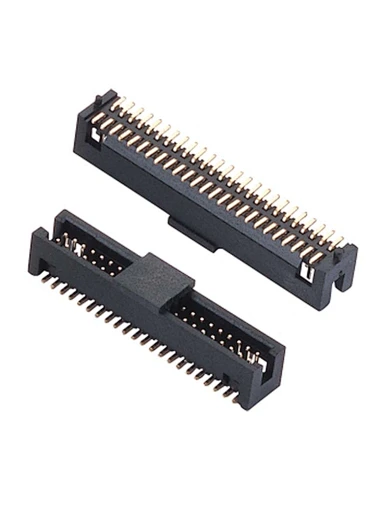

1.27mm Box Header H5.7 SMT Type
Series No.: HC-BH732-XXMG0CBK00T01
Description: 1.27mm Box Header H5.7 SMT Type
Position: 10P To 100P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:1.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
We are specialized in electronic connectors, electronic wire harnesses and hardware development,if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
