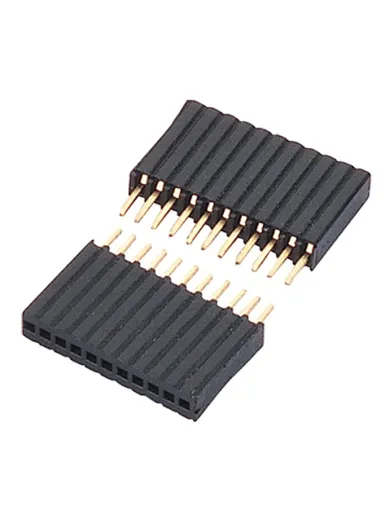

1.27mm Female Header H8.5 Single Row Straight Type
1.27mm Female Header H8.5 Single Row Straight Type
HC-FH785-01XXCNSYX01
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
HECON Professional Produce Custom Pogo Pin & Pogo Pin Connectors with many years and support samples &LOW MOQ
Quantity

Series No.: HC-FH785-01XXCNSYX01

Description: 1.27mm Female Header Pin  H8.5 Single Row Straight

Position: 1x02P TO 1X50P

Type: Straight

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

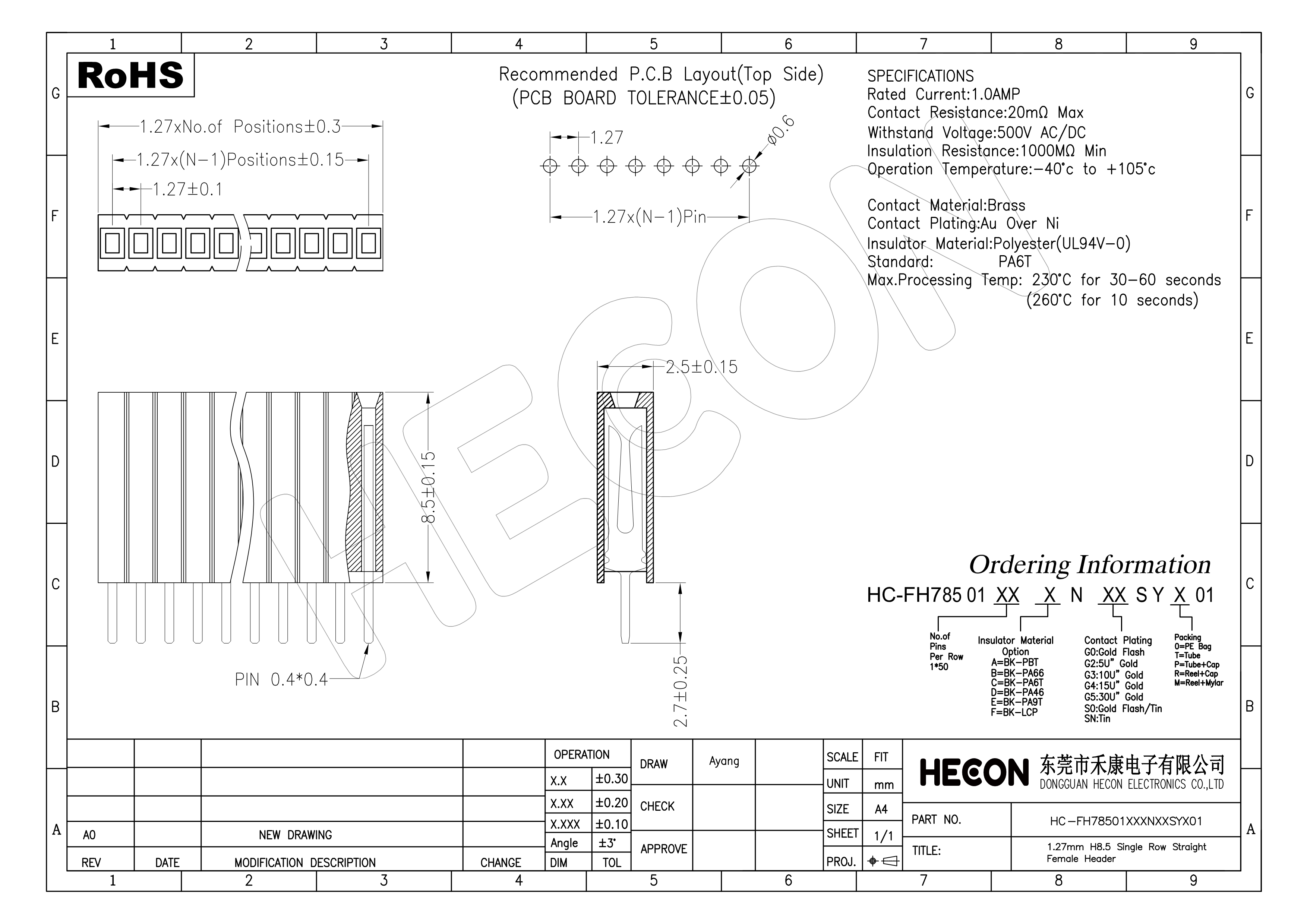

Drawings Details：

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
