Description: 1.27mm Female Header H5.7 Single Row SMT
Position: 1x40P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Series No.: HC-FH757-0140CNG0MUX01
Description:1.27mm Female Header H5.7 single row female header SMT
Position: 1x40P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Specifications
Rated Current:1.0AMP
Contact Resistance: 20 mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
Package : PE Bag/ Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.

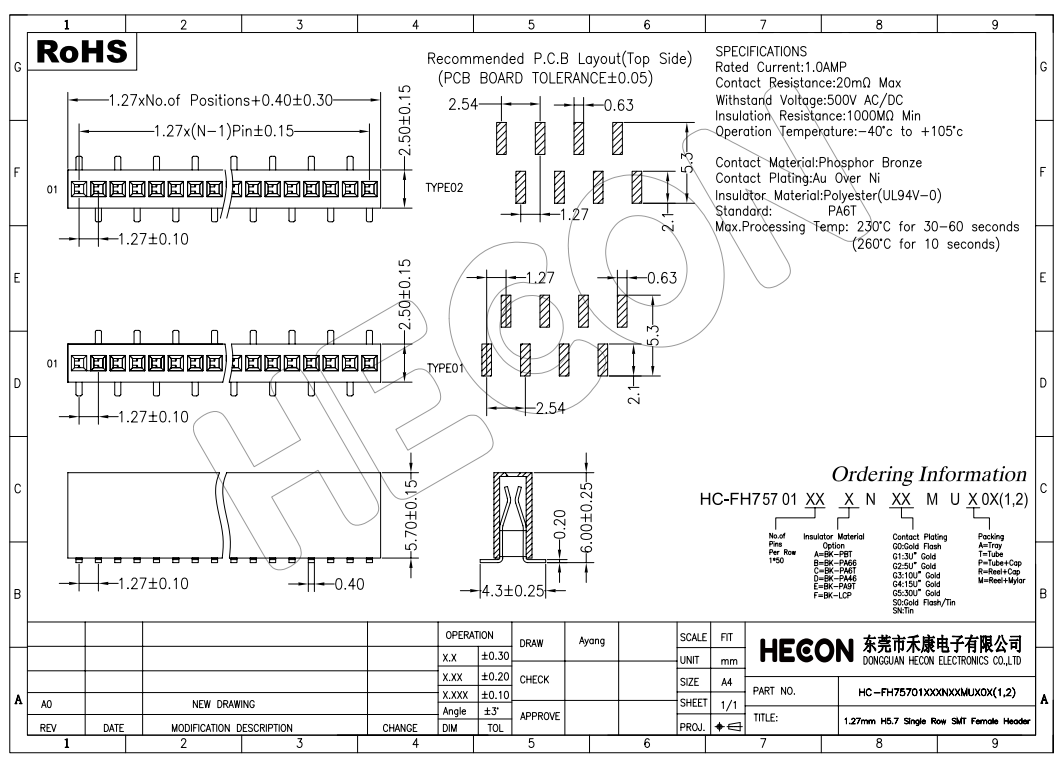

Drawings Details：
