Series No.: HC-FH743-02XXCSG0MUX01

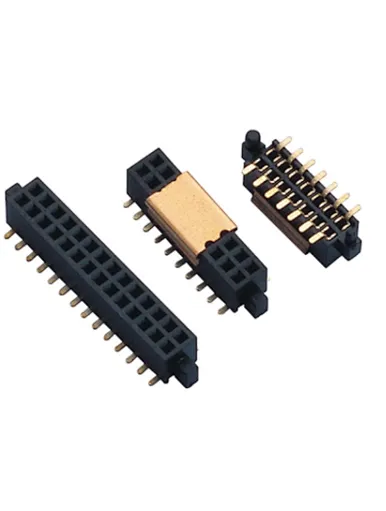

Description: 1.27mm Female Header H4.3 Dual Row SMT W/Outer Post

Position: 2x02P To 2x50P

Type: SMT W/Outer Post

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

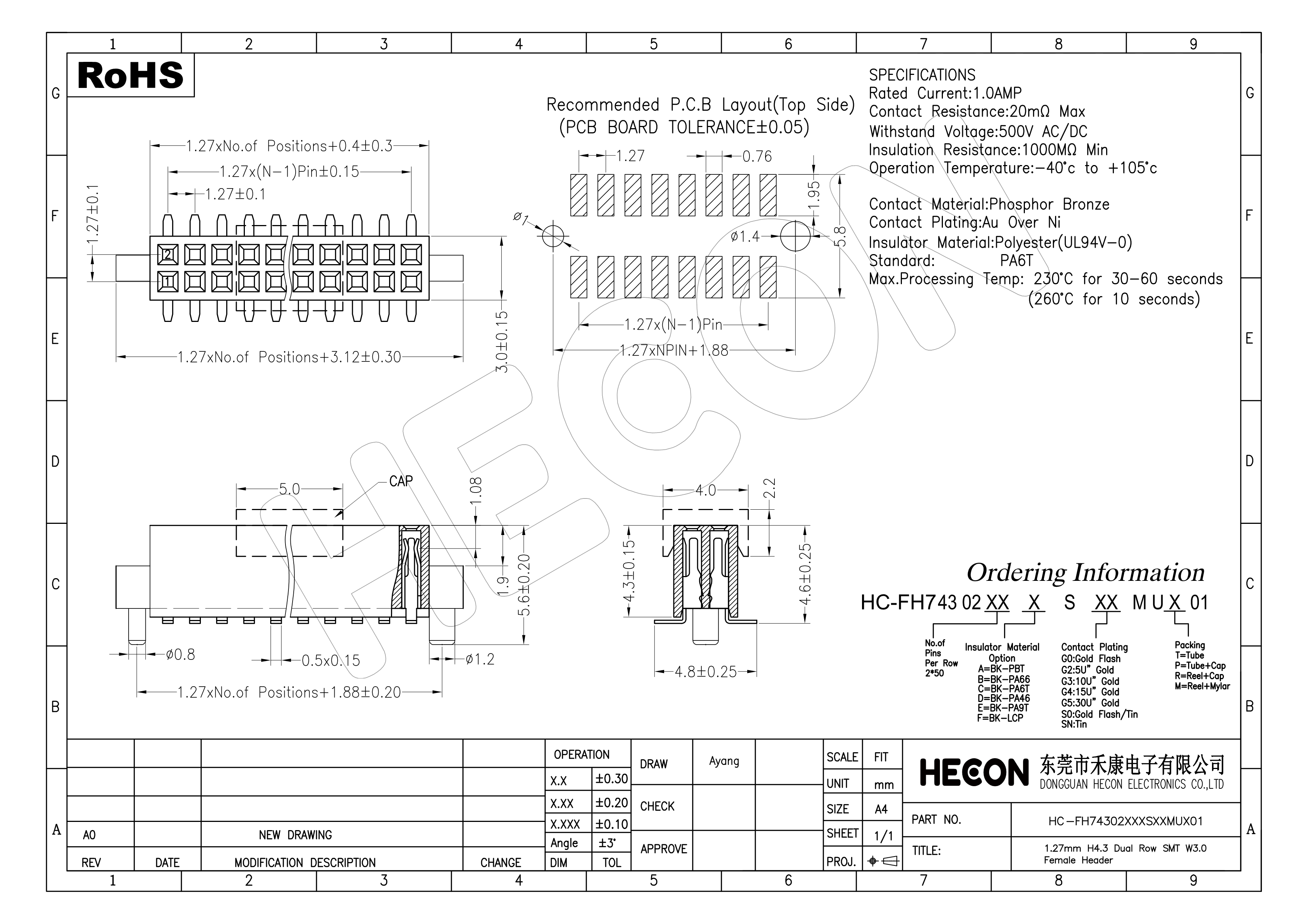

Drawings Details：

We HECON has full complete standard connectorsand special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
