Series No.: HC-FH735-02XXCNG0RUX01

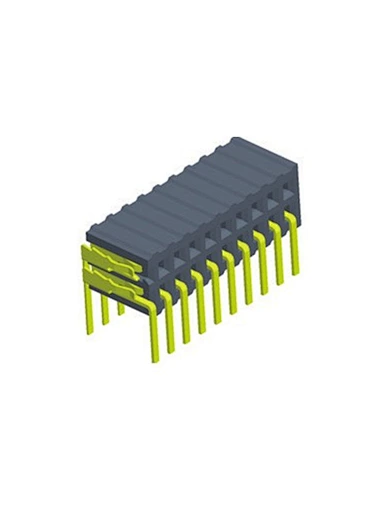

Description:1.27mm Female Header H3.5 Dual Row Right Angle Type

Position: 2x02P To 2x50P

Type: Right Angle Type

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                      260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

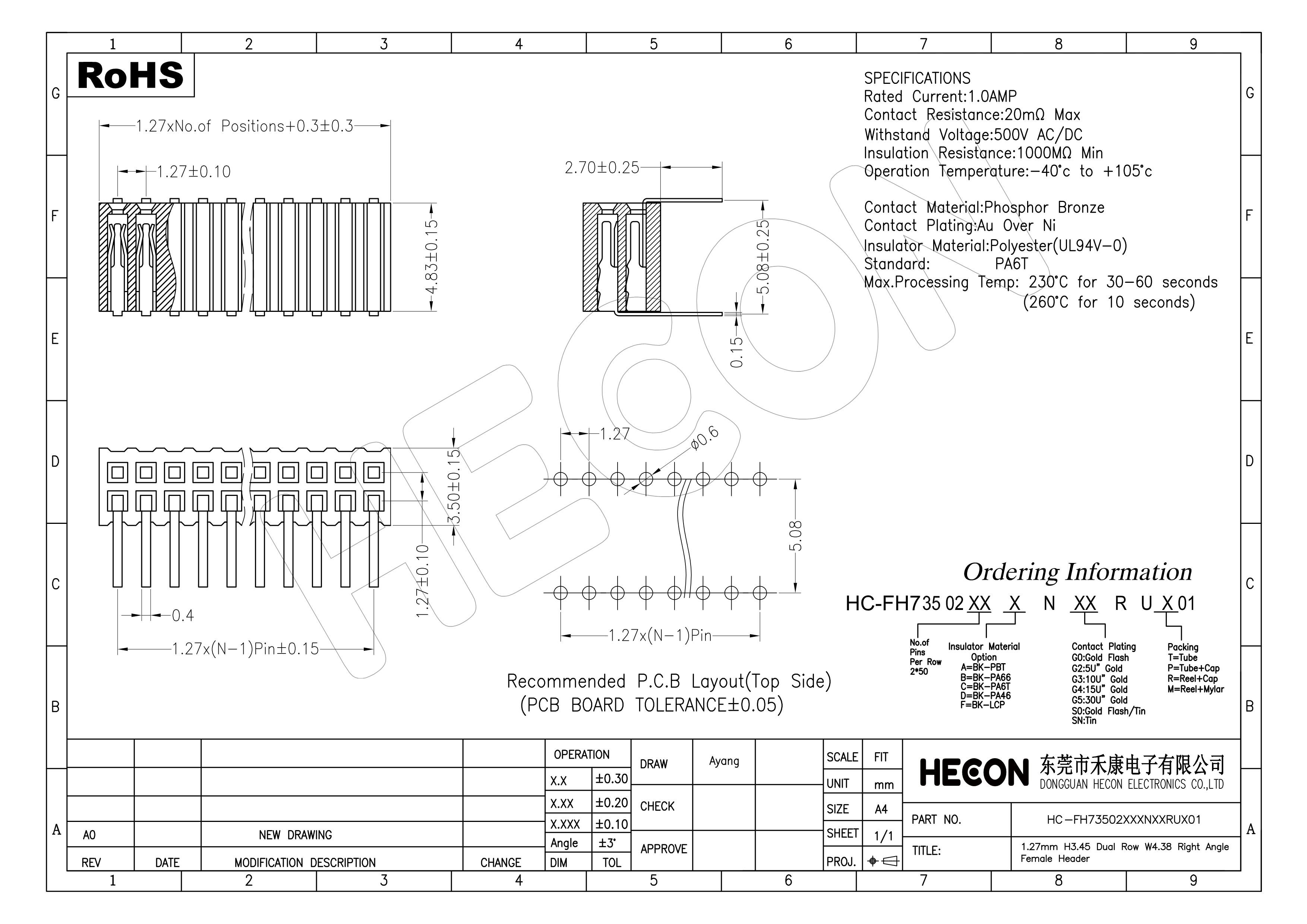

Drawings Details：
