Series No.: HC-FH734-01XXCNG0SUX01

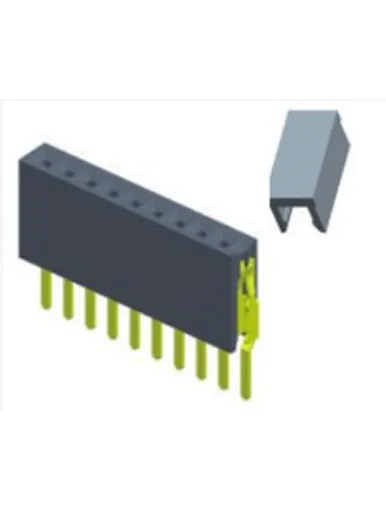

Description: 1.27mm Header Female Pins H3.4 Single Row 180 degree female header

Position: 1x02P To 1x50P

Type: Straight

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

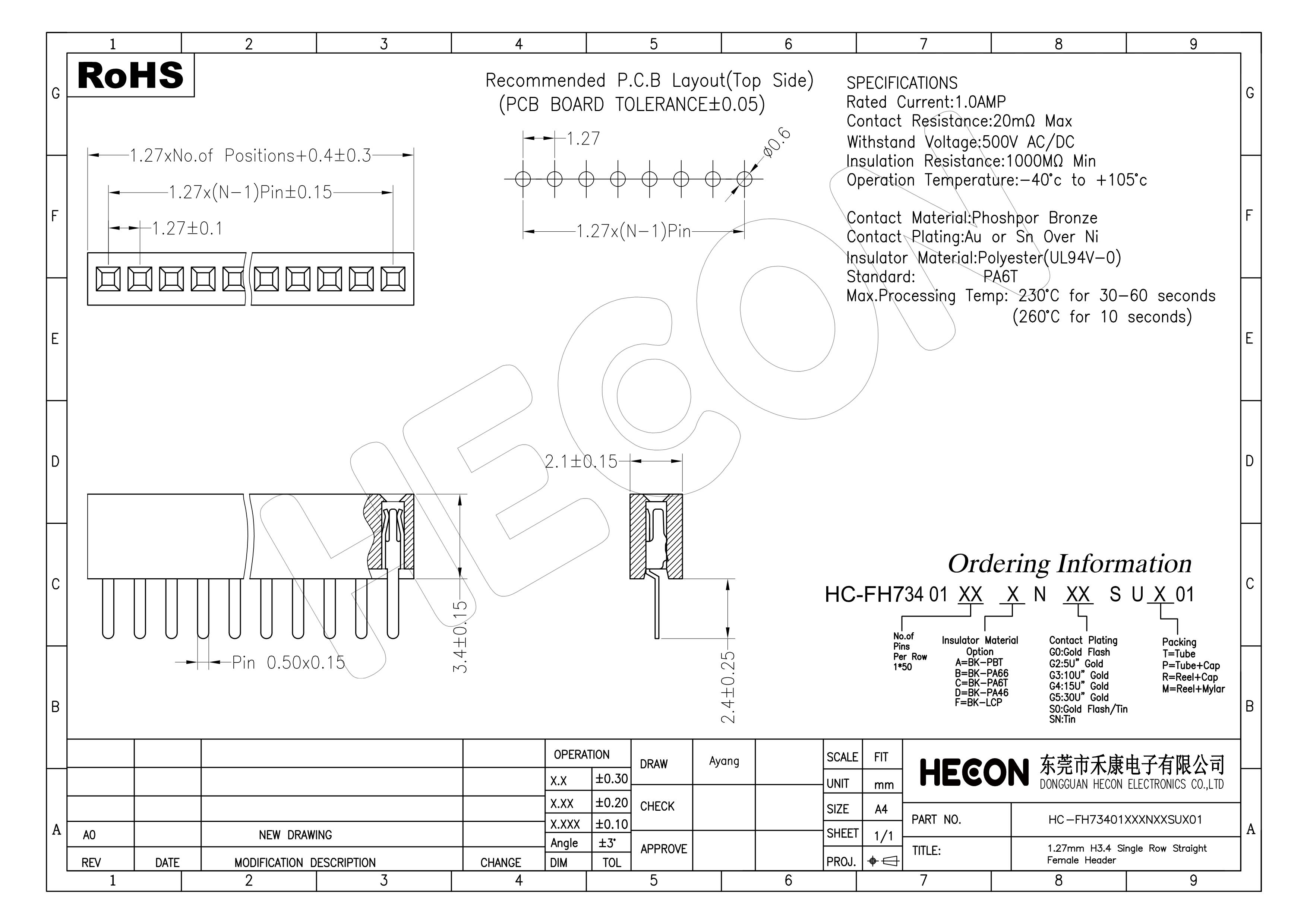

Drawings Details：

We HECON has full complete standard connectors and special customized products service such as Pogo pin and Pogo pin connectors also wire harness cable assemblies series so we thoroughly implement the products one-stop shopping, high quality, high value, time saving.
