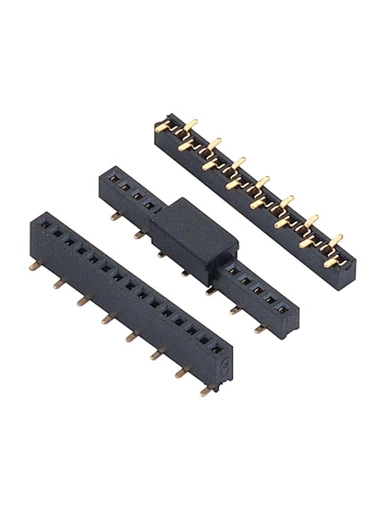

1.27mm Female Header H2.0 Single Row SMT Type
1.27mm Female Header H2.0 Single Row SMT Type
HC-FH720-01XXCNG0MUXX
EXW,FOB
500 pieces
500000pieces / Month
China
10-20Day
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
Quantity

Series No.: HC-FH720-01XXCNG0MUXX

Description: 1.27mm Female Header H2.0 Single Row SMT Type

Position: 1x02P To 1x50P

Type: SMT Type

Raw Material: PA6T

Contact Material: Phosphor Bronze

Specifications

Rated Current:1.0AMP

Contact Resistance: 20 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

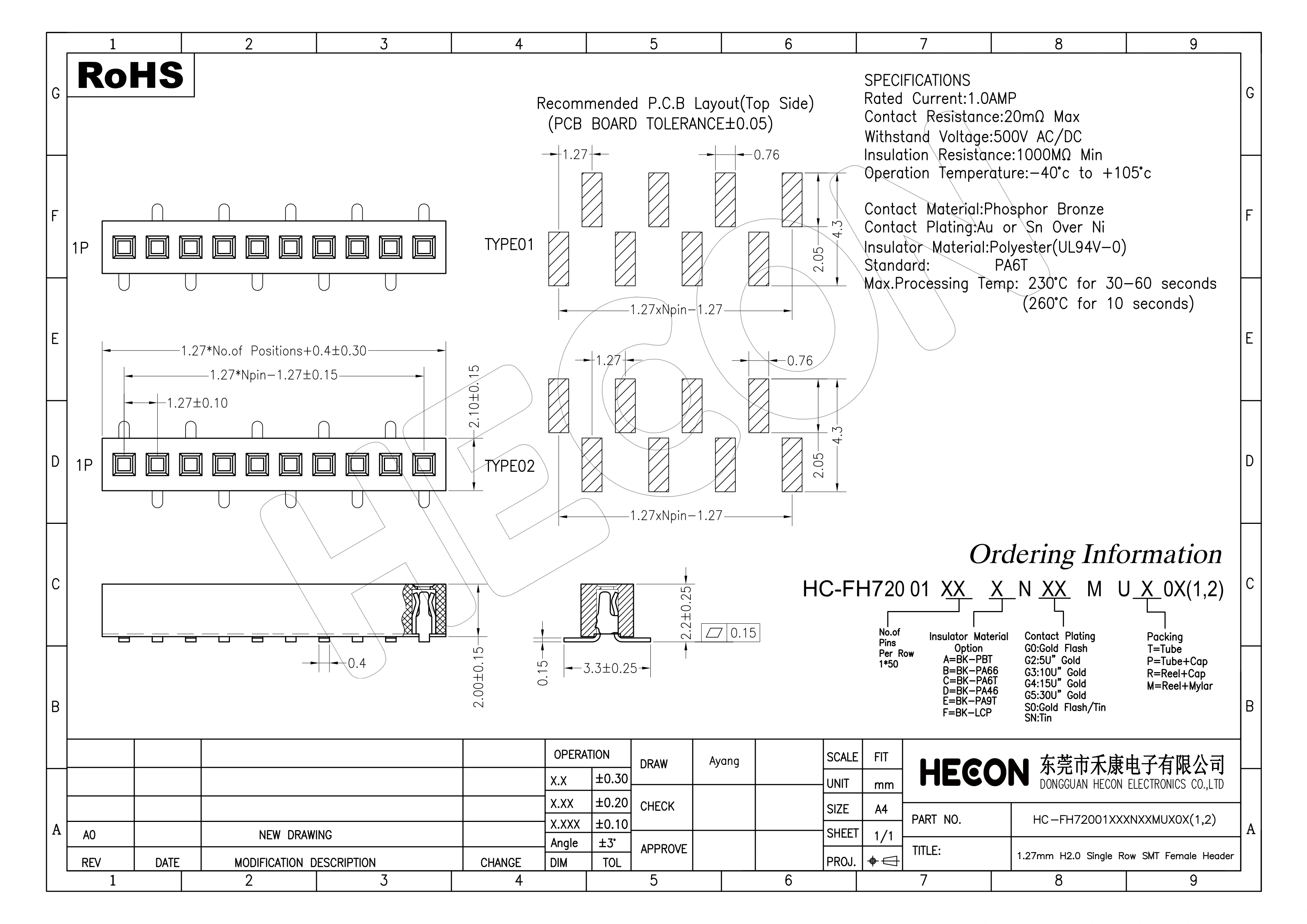

Drawings Details：

We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.
Any Help or Inquiries Please Contact us sales@dghecon.com
Thank you!
