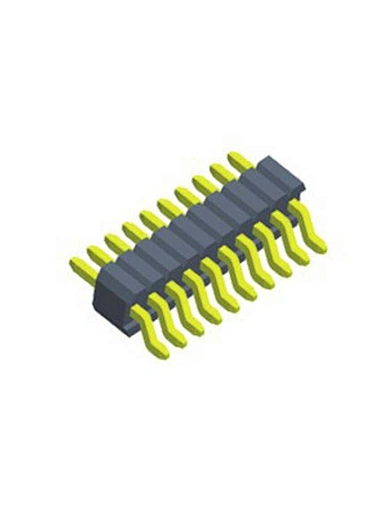

1.0mm Pin Header H1.0 Single Row Right Angle SMT Type
HC-PH810-11XXXNXXZXXXX01
EXW,FOB
500 pieces
500000pieces / Month
China
15Day
Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards
Quantity
1.0mm Pin Header H1.0 Single Row Right Angle SMT Type
Series No.: HC-PH810-11XXXNXXZXXXX01
Description: 1.0mm Pin Header H1.0 Single Row Right Angle SMT Type
Customized size: PA/PB/D Accepted
Position: 2x20P
Type: SMT
Raw Material: PA6T
Contact Material: Brass
Specifications
Rated Current:0.75AMP
Contact Resistance: 30mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Contact Plating：Au or Sn Over Ni
Insulator Material:Polyester(UL94V-0)
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds

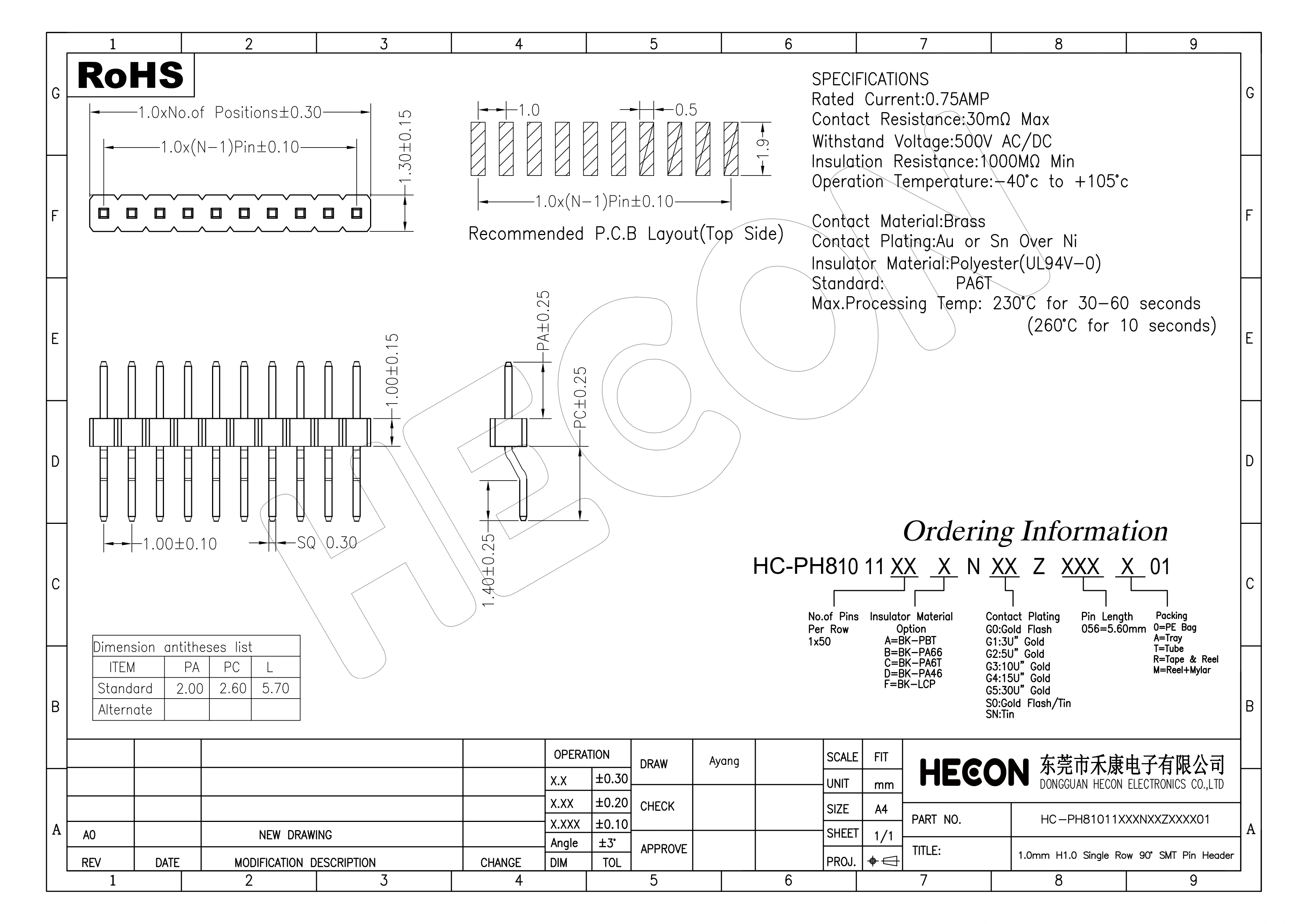

Drawings Details：
