Series No.: HC-FH820-01XXCNG0MUX01

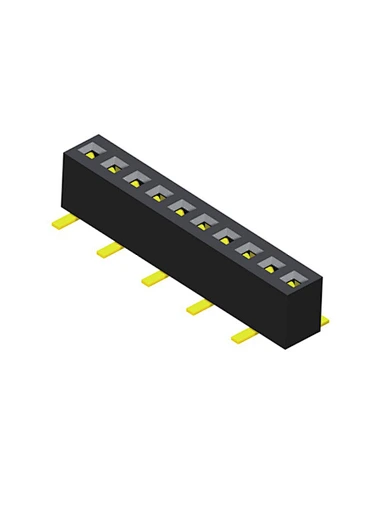

Description:1.0mm Female Header H2.0 Single Row SMT

Position: 1x02P To 1x50P

Type: SMT

Raw Material: PA6T

Contact Material: Brass

Specifications

Rated Current:0.75AMP

Contact Resistance: 30 mΩ Max

Withstand Voltage:500V AC/DC

Insulation Resistance:1000mΩ Min

Operation Temperature: -40°c to +105°c

Max.Processing Temp: 230°c for 30-60 Seconds

                                     260°c for 10 Seconds

Package : PE Bag/ Tube /Tray /or Tape&Reel Packing

MOQ: 1K

Free samples:10pcs within 1 weeks.

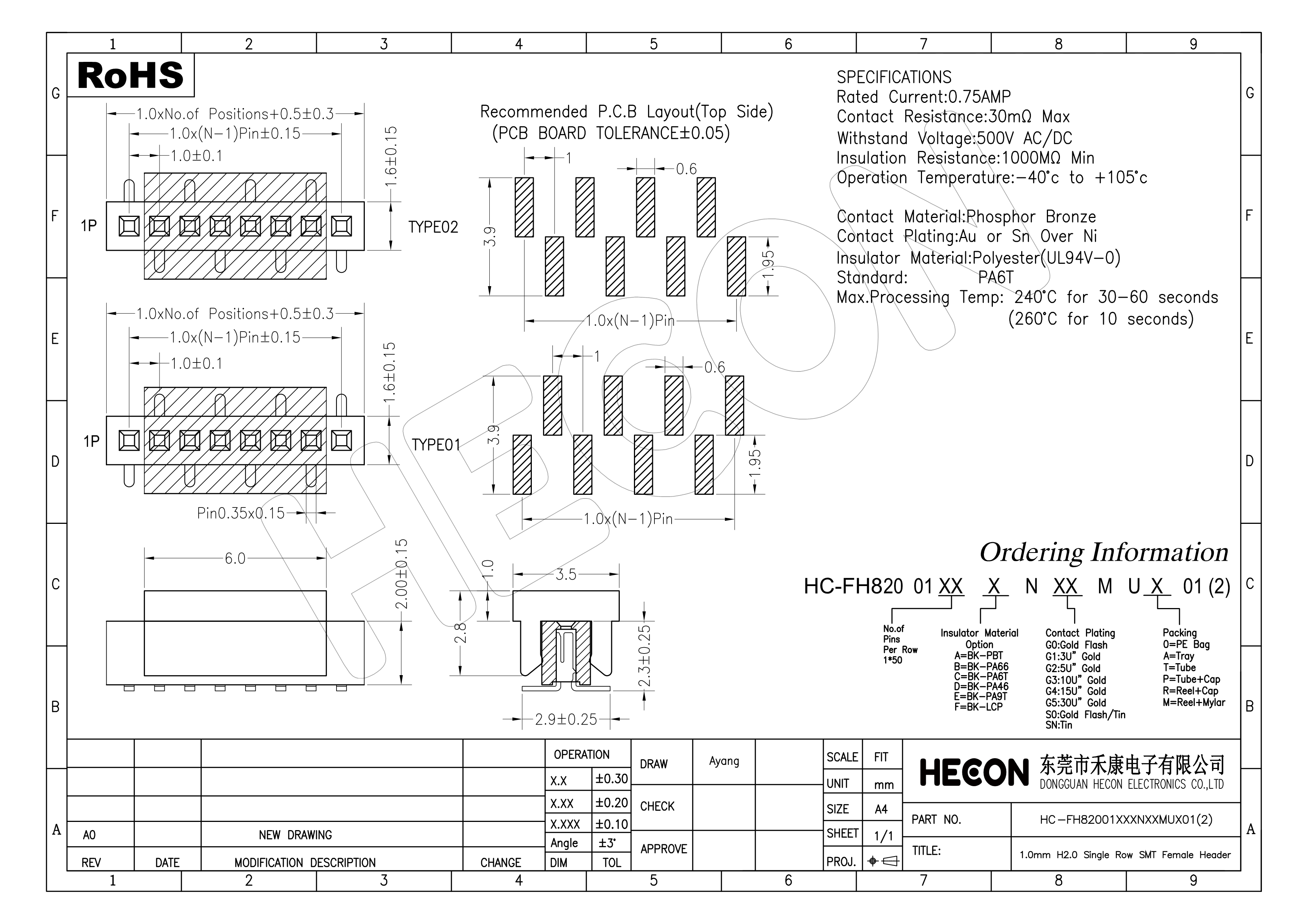

Drawings Details：
