4.2mm Pitch Housing Connector-Cable Assembly|HECON

4.2mm Pitch Wire-to-Board Receptacle Housing Connector Single Row Female Plastic Housing Terminal Kit

Model NO. HC-H4202-1xNP-XX

Delivery EXW,FOB

Minimum order quantity 100 pieces

Supply Ability 300000pieces / Month

Country of Origin China

Stock Time 15-25Day

Custom solution manufacturer of wire harness cable &PCB Connectors
Meet One -Stop -Sourcing and save your time and Cost
LOW MOQ | 10 days delivery time | OEM/ODM service
Operating under ISO 9001:2000 Standards

Quantity

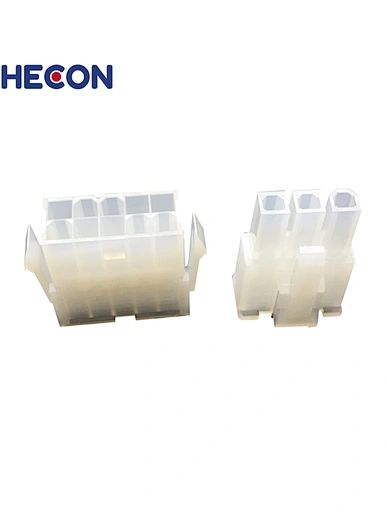

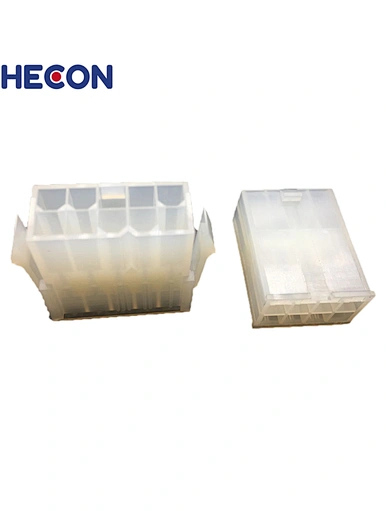

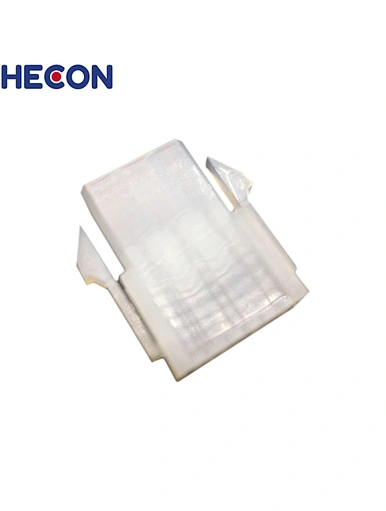

4.2mm Pitch Housing Connector

Model Number :HC-H4202-1xNP-XX

Product name :4.2mm Pitch Wire-to-Board Receptacle Housing Connector Single Row Female Plastic Housing Terminal Kit

Pin:02-06P

Gender: Female

Voltage rating ：600V AC, DC

Insulation resistance ：1000MΩ min

Operating temperature ：-40°C to +105°C

Withstanding Voltage ： 1500V AC/minute

Current rating ：7A, AC, DC

Sample ：10 Free samples with in 1 week

Delivery date ：2-3Weeks after confirm your order

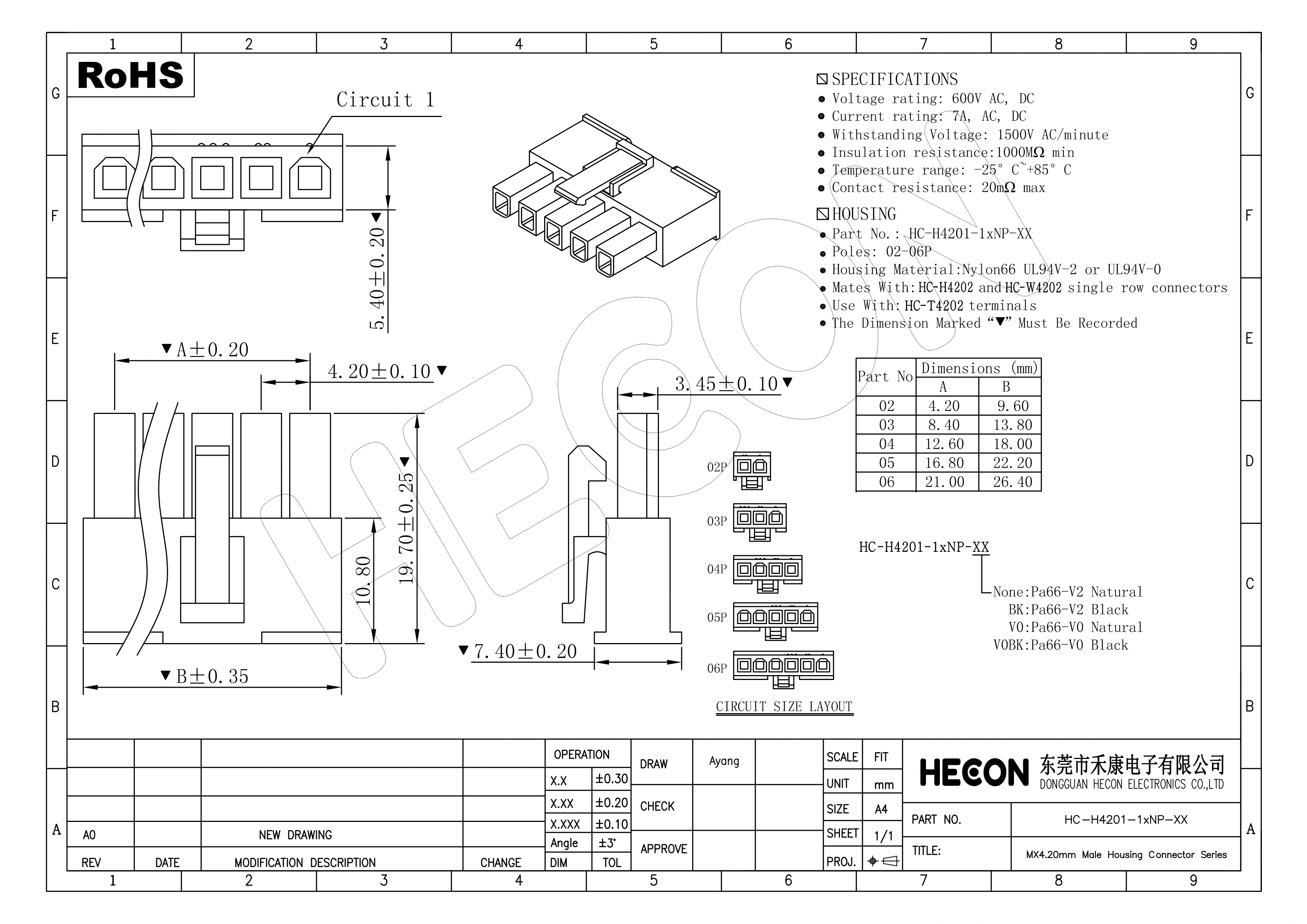

Drawings Details：

We HECON has full complete standard connectors also special customized products service such as Pogo Pin, Pogo pin Connectors, Pin header, Female header, PCB Connectors and Wire Harness Cable& Cable Assemblies series so we thoroughly implement the products One-Stop-Shopping with High Quality, High Value, Time Saving.

Any Help or Inquiries Please Contact us sales@dghecon.com

Thank you!
