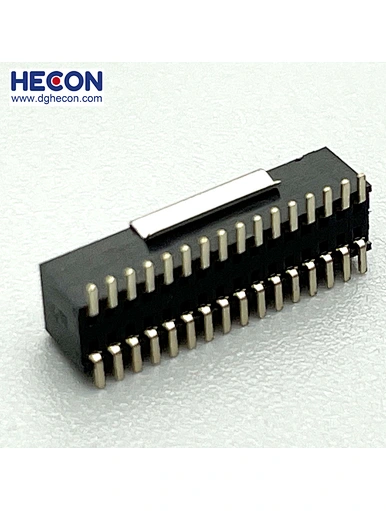

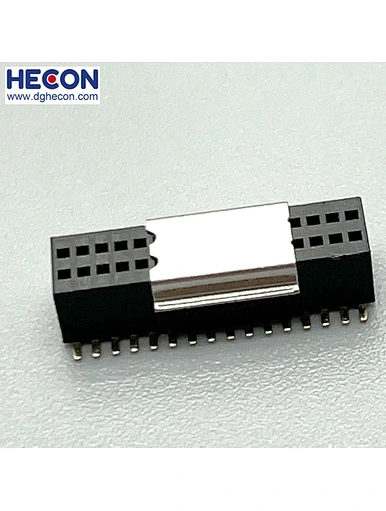

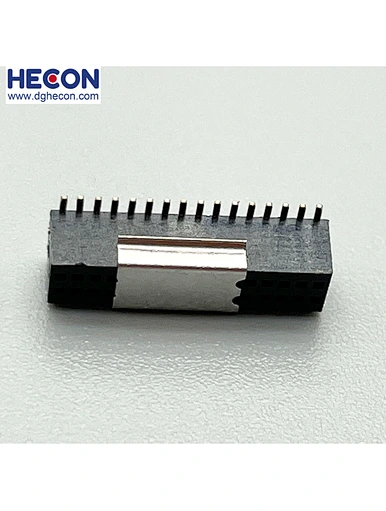

0.8mm Female Header H3.1 2x16P SMT Header
HC-FH931-0216FNG0MUP01
0.8mm Female header H3.1 2x16P, SMT ,Gold Flash, LCP, Black, Metal Cap+Tube Packing
Quantity
Series No.: HC-FH931-0216FNG0MUP01
Description: 0.8mm Female header H3.1 2x16P SMT Metal Cap+Tube Packing
Position: 2x02P TO 2x50P
Type: SMT
Raw Material: LCP
Contact Material: Brass/Phosphor Bronze
Package :Tube /Tray /or Tape&Reel Packing
MOQ: 1K
Free samples:10pcs within 1 weeks.
Specifications
Rated Current:7.0AMP
Contact Resistance: 20mΩ Max
Withstand Voltage:1500V AC/DC
Insulation Resistance:1000mΩ Min
Operation Temperature: -40°c to +105°c
Max.Processing Temp: 230°c for 30-60 Seconds
260°c for 10 Seconds
