Series Number : HC-BTB80-M080032G1FR01

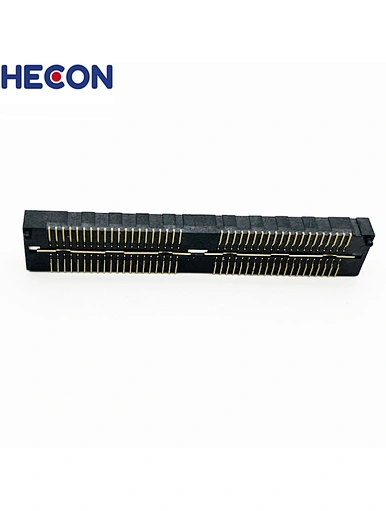

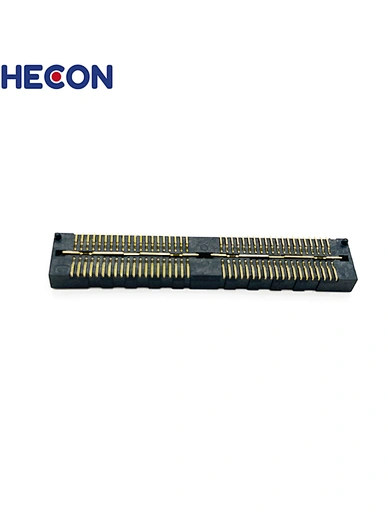

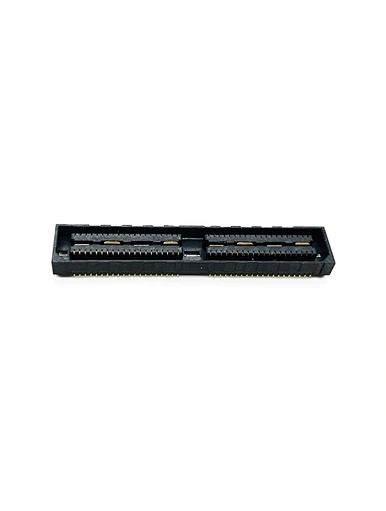

Description: 0.8mm Pitch High Speed Display Board to Board Connectors 80P Male H3.25
Position: 80P
Height：3.25
Type: SMT
Housing Material： LCP UL94V0
Contact Materi:: Brass
Specifications&Performane
Signal Current Rating:2A/1PIN
Ground Plane Powered Current Rating:25A/1 Ground
Withstand Voltage： 125V AC/minute
Contact Resistance： 50mΩ Max
Insulation Resistance：500MΩ Min.
Operating Temperature：-40℃ ~ +105℃
Contact Material: Phosphor Bronze
Body Housing： LCP UL94V0
Max. Soldering Temperature：260℃±5℃ 5s
Packing way : Tube/Reel Packing
MOQ: 1K

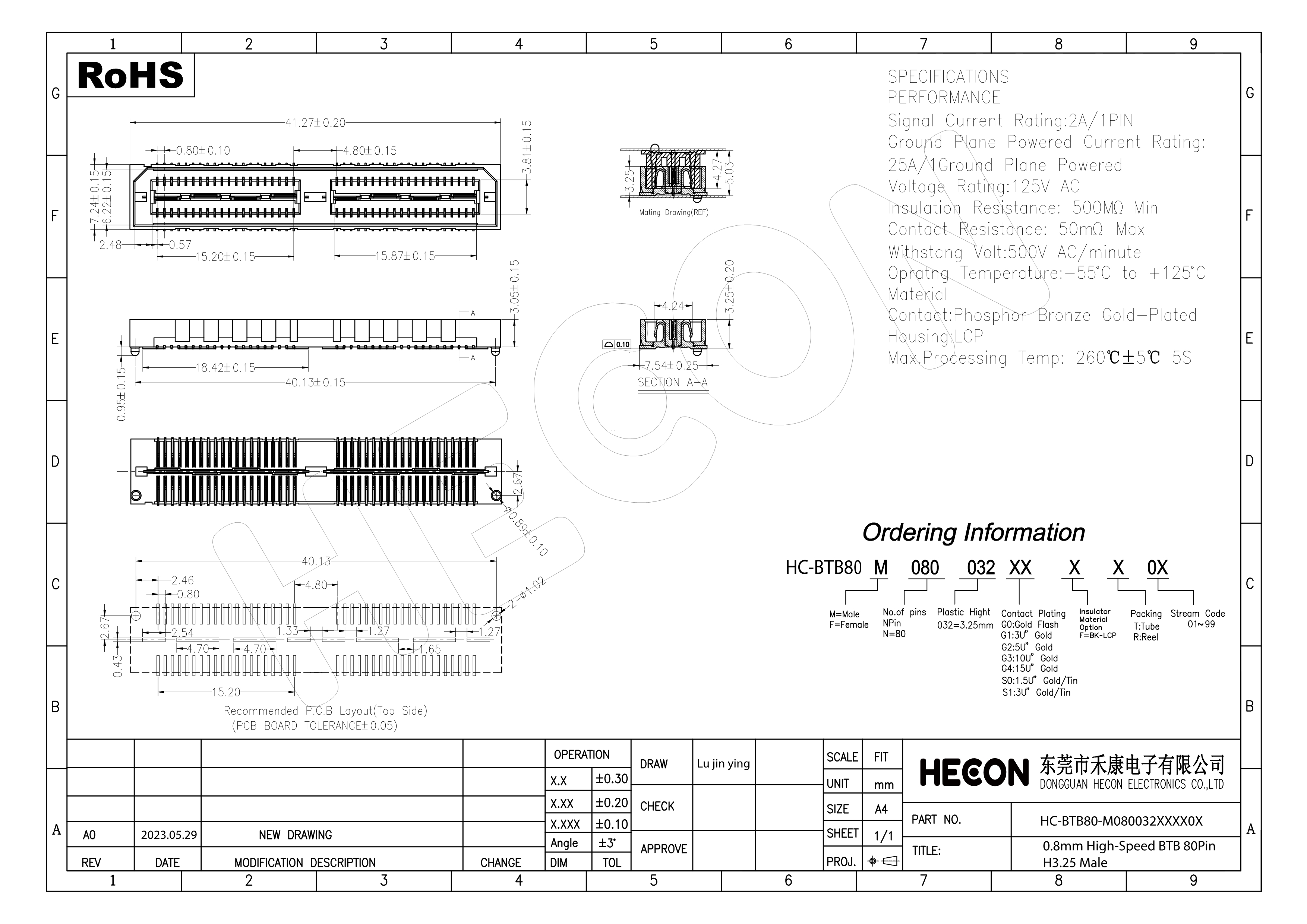

Drawings Details:
Dongguan Hecon Electronics Co., Ltd. can provide high-speed Display board to board connector, floating board to board connector, ordinary type board to board and other specifications of connectors & Cable Assemblies products and services.
Our Products Board To Baord connector main Pitch: 0.5 mm | 0.635 mm | 0.8 mm | 1.0 mm | 1.25 mm| 2.0mm | 2.54mm and more can be customized service for you!
